Solar Water Pump Kit – 5000L/h Flow 255m Bore Depth

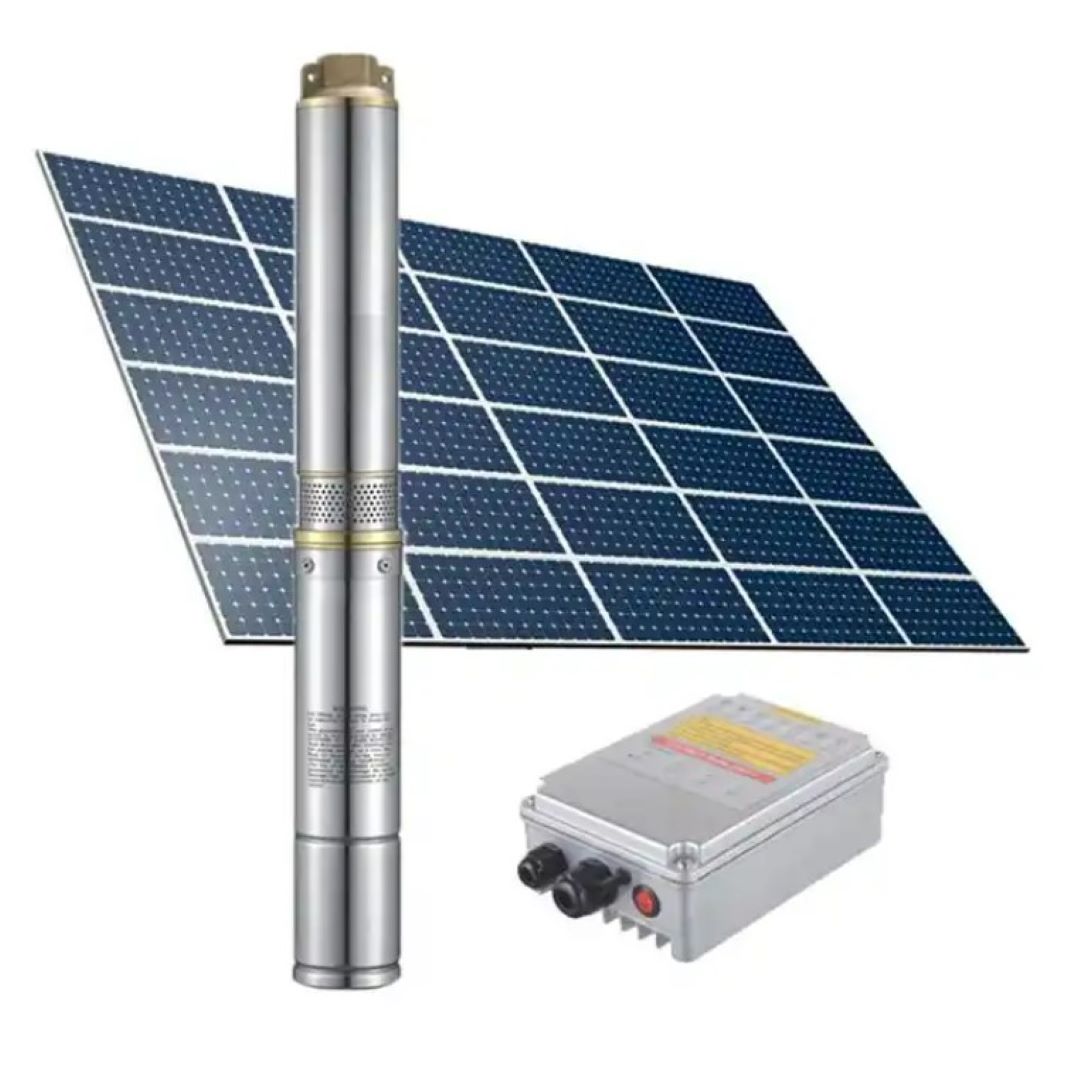

The SOL5000-255-KIT is the ultimate pump solution. This unit contains a pump package, cabling, controller, 8 solar PV panels, and a mounting frame with an embedment pole. It serves as a solar-powered alternative to traditional windmill and diesel pumps, offering convenience, efficiency and sustainability. This kit includes the following: 316 stainless steel submersible screw pump to endure harsh conditions in bores. Full length rotor motors to provide an outstanding maximum 5,000L per hour flow and a massive 255m total head capacity. Easy to install, user-friendly pump and MPPT controller with full instruction guide. High & low water sensors are included to ensure your pump doesn’t run dry or overfills your tank. 1.25 inch inch outlet for this high-head submersible solar water pump. 40m pump power cabling for the pump head, PV cable and MC4 weather resistant solar connectors. Cabling and instructions on how to connect the 72V DC solar pump system: total in 8 x 560W solar panels in series to provide the voltage and power (Watts) to suit the selected pump. Easy to install solar panels Additional Information Max Head (m) 255 Max Flow (L/hour) 5000 Pump Diameter 100mm Outlet Size (in) 1 1/4" BSP Power Input (W) 2200 Voltage (V DC) 216 Pump Material 316 Stainless Steel Power Cable Length (m) 40 Power Cable Size 4.00m2 Solar PV Panels 8 x in series Mounting Frame and Pole 4 x section pole and frame included Weight (kg) 197 Dimensions (cm) 225L x 70W x 40H
