Solar Water Pump Kit – 2100L/h Flow 120m Bore Depth

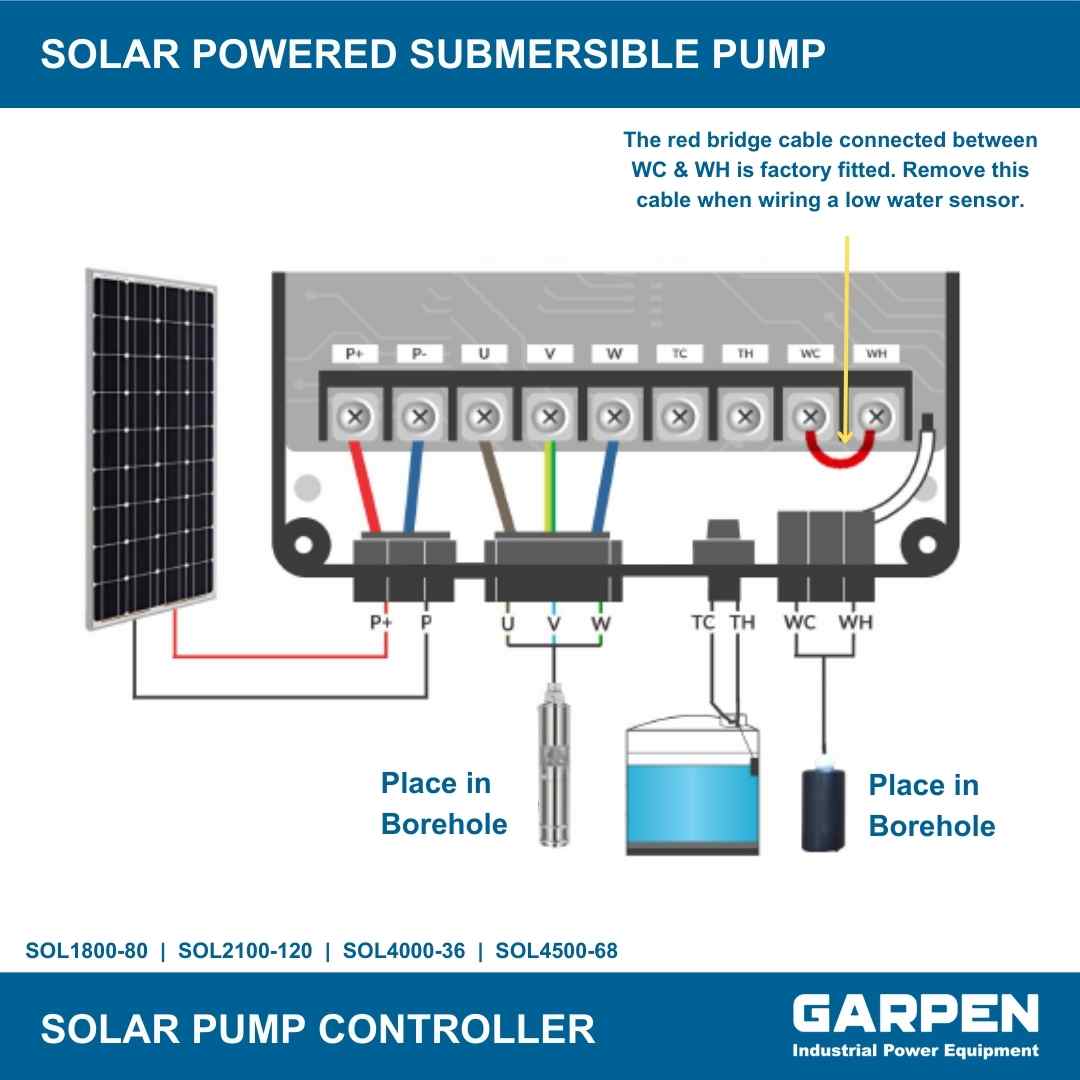

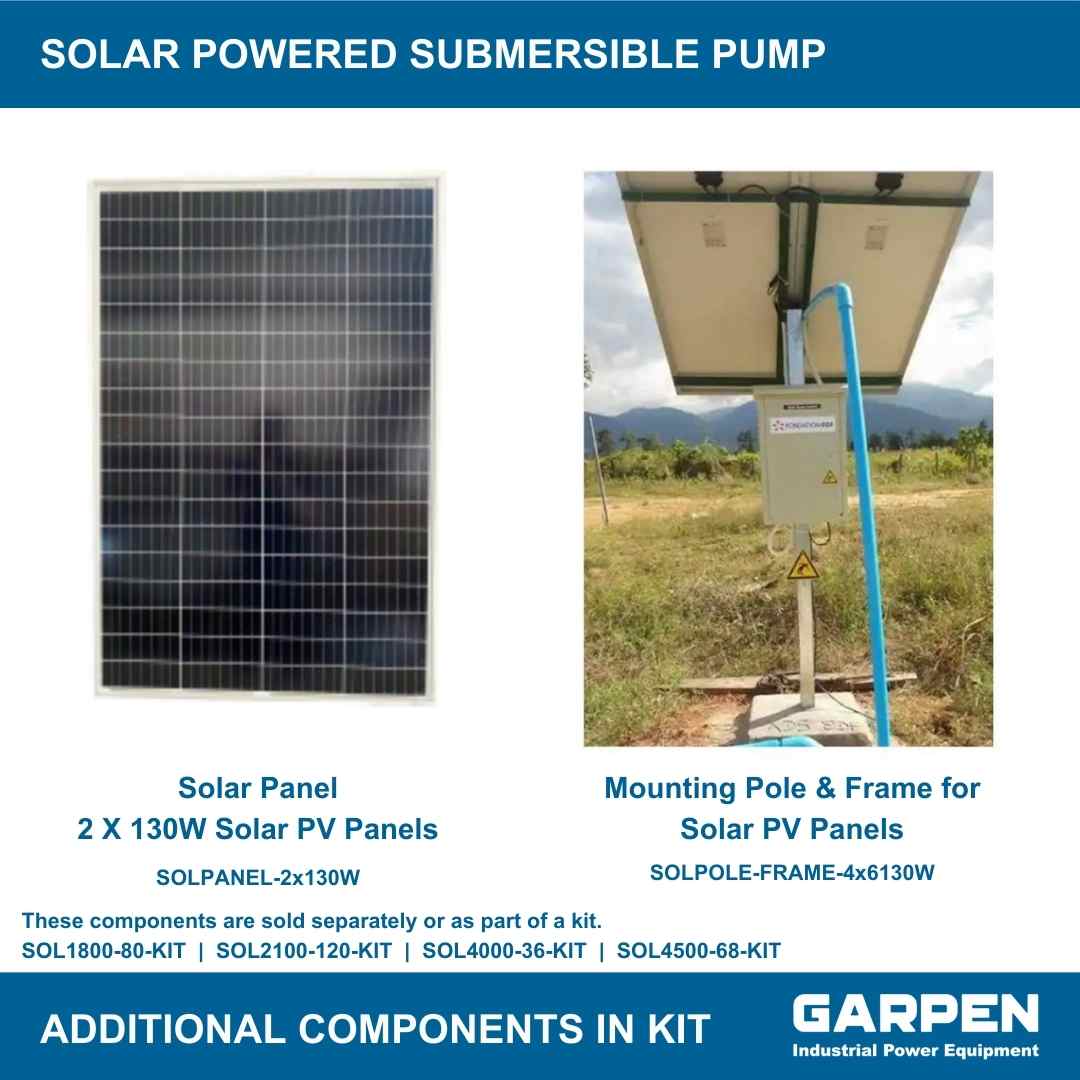

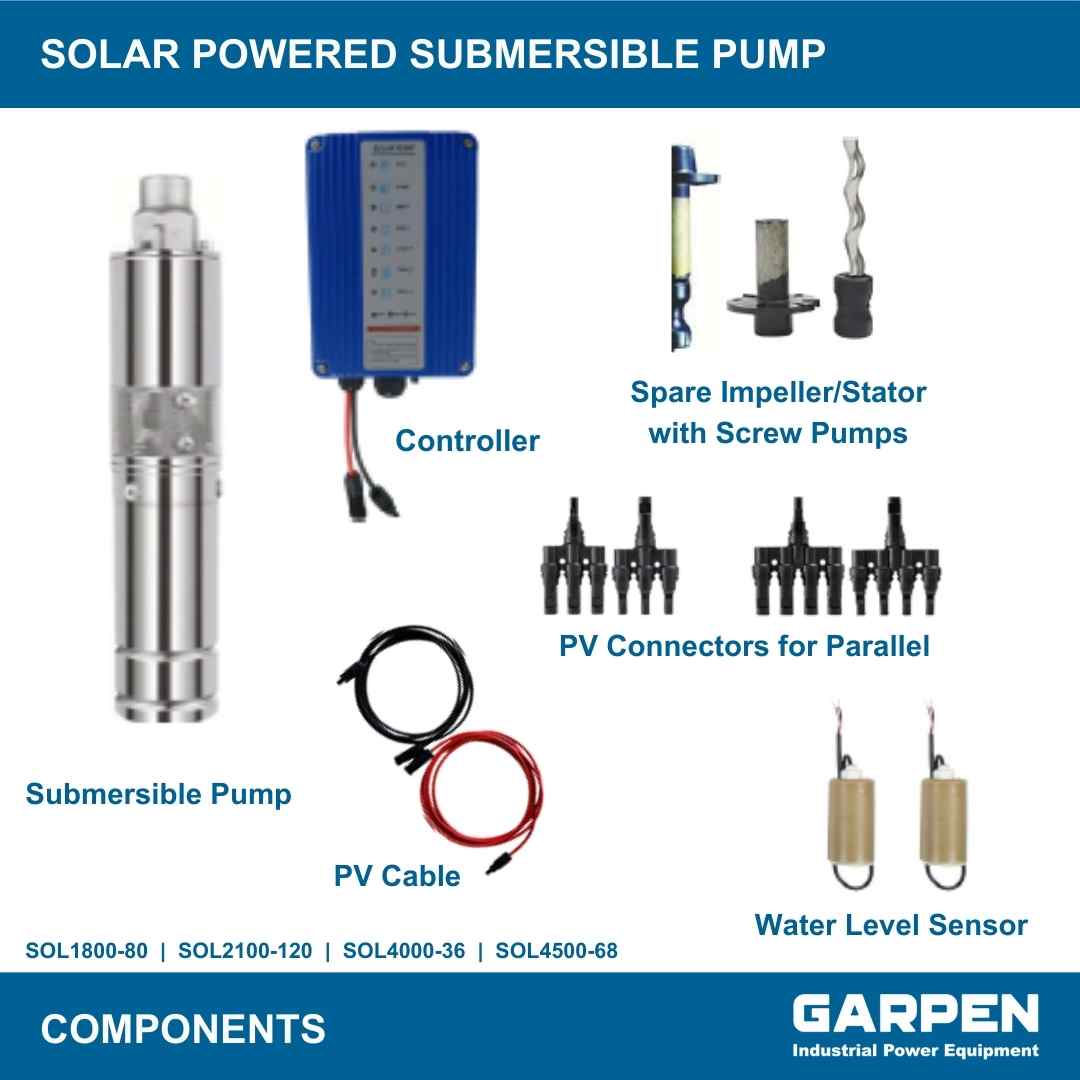

The SOL2100-120-KIT is a complete pump solution, including a pump package, cabling, controller, 6 solar PV panels, and a mounting frame with an embedment pole. It serves as a solar-powered alternative to traditional windmill and diesel pumps, offering convenience, efficiency and sustainability. This kit includes the following: 316 stainless steel submersible screw pump to endure harsh conditions in bores. Full length rotor motors to provide a maximum 2,100L per hour flow and 120m total head capacity. Easy to install, user-friendly pump and MPPT controller with full instruction guide. High & low water sensors are included to ensure your pump doesn’t run dry or overfills your tank. 3/4 inch outlet for this high-head submersible solar water pump. 75m pump power cabling for the pump head, PV cable and MC4 weather resistant solar connectors. Cabling and instructions on how to connect the 48V DC solar pump system: total in 6x 24V 130W solar panels, each string has 2 panels in series, with the 3x strings in parallel to provide the voltage and power (Watts) to suit the selected pump. SOLPOLE-FRAME-4-6X130W is the quick and easy to install frame that can accommodate the 6x solar PV panels. The 3 metre pole provides sufficient embedment depth for stability and solar PV panel clearance off the ground to avoid disturbance from animals. Additional Information Max Head (m) 120 Max Flow (L/hour) 2100 Pump Diameter 75mm Outlet Size (in) 3/4" BSP Power Input (W) 540 Voltage (V DC) 48 Pump Material 316 Stainless Steel Power Cable Length (m) 75 Power Cable Size 3G6.00m2 Solar PV Panels 6x panels 2 in series 3 strings in parallel Mounting Frame and Pole 2x section pole and frame includes Weight (kg) 197 Dimensions (cm) 225L x 70W x 40H
