Solar Water Pump Kit – 1800L/h Flow 80m Bore Depth

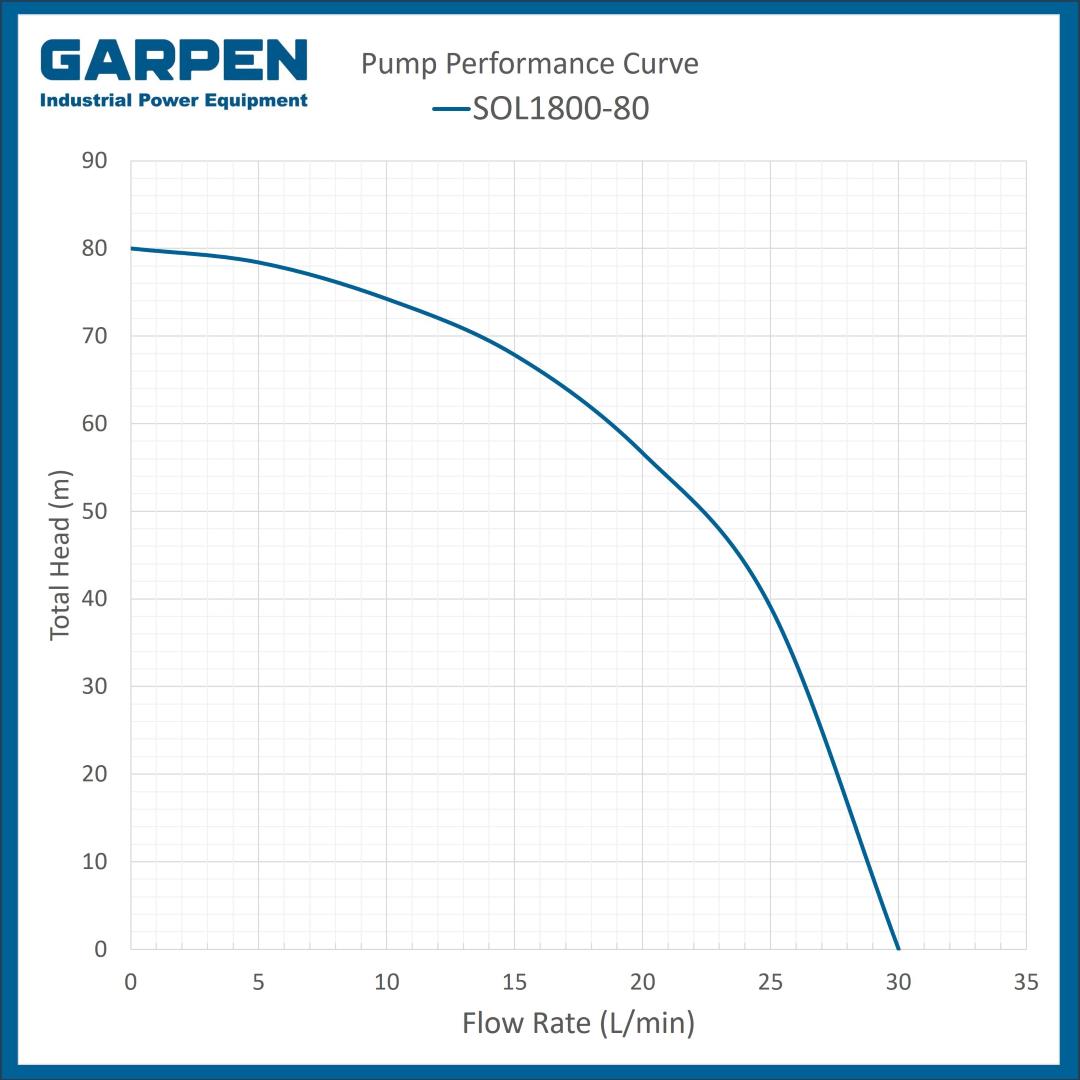

The SOL1800-80-KIT is a complete pump solution, including a pump package, cabling, controller, solar PV panels, and a mounting frame with an embedment pole. It serves as a solar-powered alternative to traditional windmill and diesel pumps, offering convenience, efficiency and sustainability. This kit includes the following: Ultra-low DC voltage Stainless Steel Submersible Pump – The Complete Kit 316 stainless steel submersible screw pump to endure harsh conditions in bores. Full length rotor motors to provide a maximum 1,800L per hour flow and 80m total head capacity. Easy to install, user-friendly pump and MPPT controller with full instruction guide. High & low water sensors are included to ensure your pump doesn’t run dry or overfills your tank. 3/4″ outlet for this high-head submersible solar water pump. 50m pump power cabling for the pump head, PV cable and MC4 weather resistant solar connectors. 4x 130W solar PV panels that can be coupled together in parallel to provide the voltage and power (Watts) to suit the selected pump. Cabling and instructions on how to connect the 4x solar panels in parallel. SOLPOLE-FRAME-4-6X130W is the quick and easy to install frame that can accommodate the 4x solar PV panels. The 3 metre pole provides sufficient embedment depth for stability and solar PV panel clearance off the ground to avoid disturbance from animals. Additional Information Max Head (m) 80 Max Flow (L/hour) 1800 Outlet Size (in) 3/4" BSP Power Input (W) 300 Voltage (V DC) 24 Pump Material 316 Stainless Steel Power Cable Length (m) 50 Power Cable Size 3G4.00m2 Solar PV Panels 4 Panels in parallel included Mounting Frame and Pole 2x section pole and frame includes Pump Diameter 75mm Weight (kg) 160 Dimensions (cm) 225L x 70W x 40H
