Solar Water Pump Kit – 4000L/h Flow 36m Bore Depth

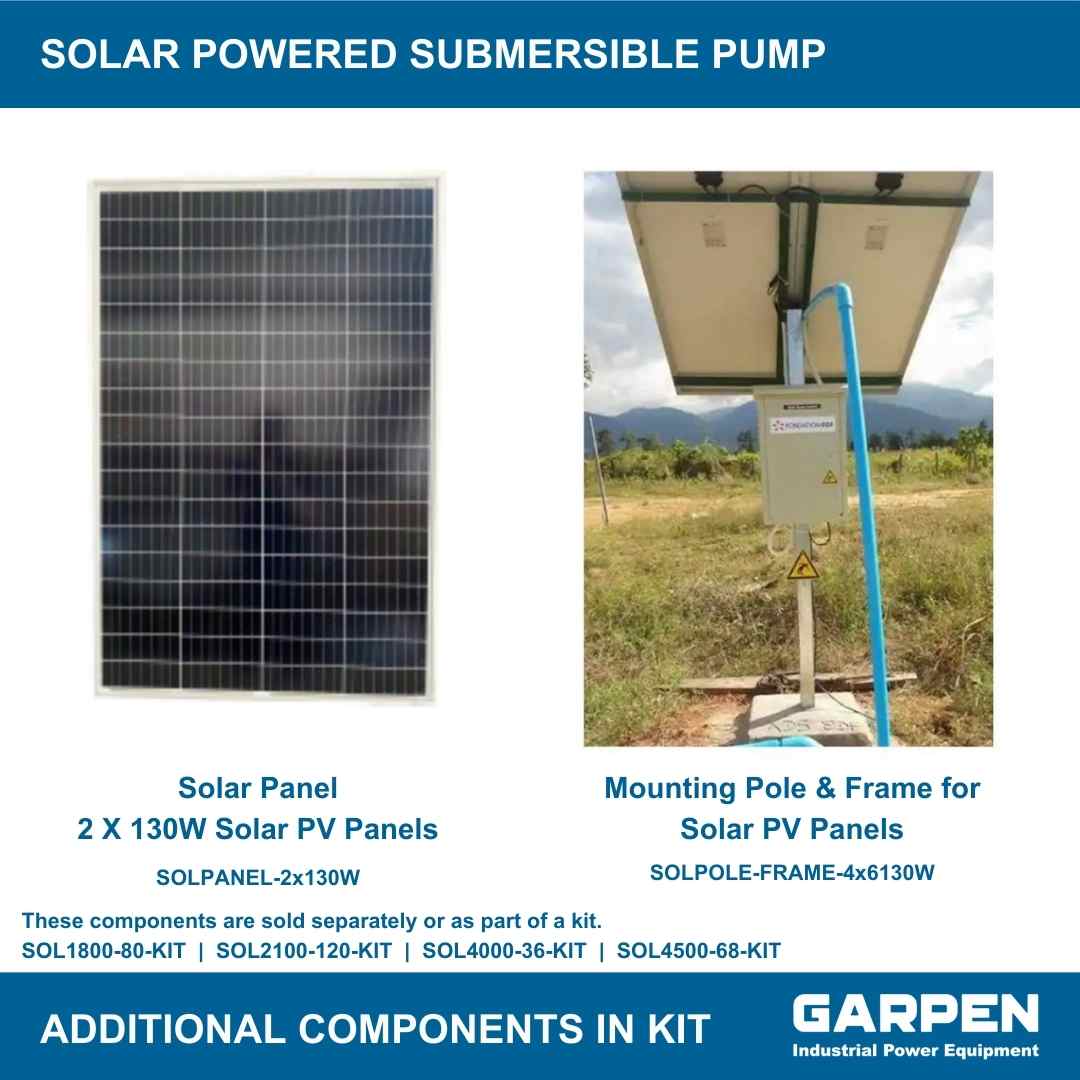

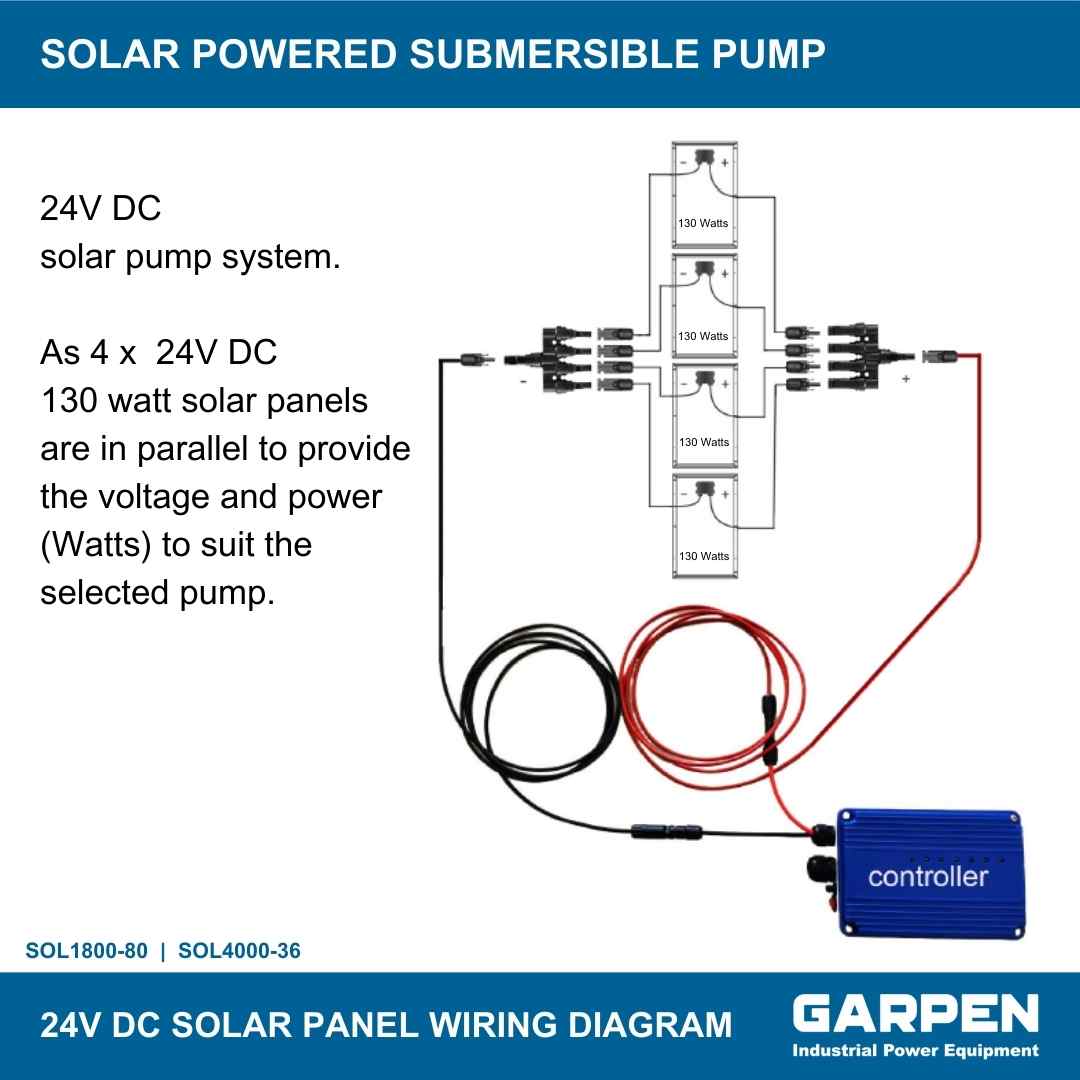

The SOL4000-36-KIT is a complete pump solution, including a pump package, cabling, controller, 4 solar PV panels, and a mounting frame with an embedment pole. It serves as a solar-powered alternative to traditional windmill and diesel pumps, offering convenience, efficiency and sustainability. This kit includes the following: Ultra-low DC voltage Stainless Steel Submersible Pump – The Complete Kit 316 stainless steel submersible centrifugal pump to endure harsh conditions in bores. Full length rotor motors to provide a maximum 4,000L per hour flow and 36m total head capacity. Easy to install, user-friendly pump and MPPT controller with full instruction guide. High & low water sensors are included to ensure your pump doesn’t run dry or overfills your tank. 1.25″ outlet for this high-flow submersible solar water pump. 30m pump power cabling for the pump head, PV cable and MC4 weather resistant solar connectors. 4x 130W solar PV panels that can be coupled together. As a 24V DC solar pump system: 4 x130W solar panels are in parallel to provide the voltage and power (Watts) to suit the selected pump. Cabling and instructions on how to connect the 4x solar panels in parallel SOLPOLE-FRAME-4-6X130W is the quick and easy to install frame that can accommodate the 4x solar PV panels. The 3 metre pole provides sufficient embedment depth for stability and solar PV panel clearance off the ground to avoid disturbance from animals. Additional Information Max Head (m) 36 Max Flow (L/hour) 4000 Pump Diameter 75mm Outlet Size (in) 1 1/4" BSP Power Input (W) 300 Voltage (V DC) 24 Pump Material 316 Stainless Steel Power Cable Length (m) 30 Power Cable Size 3G3.00m2 Solar PV Panels 4 Panels in parallel included Mounting Frame and Pole 2x section pole and frame includes Weight (kg) 153 Dimensions (cm) 225L x 70W x 40H
