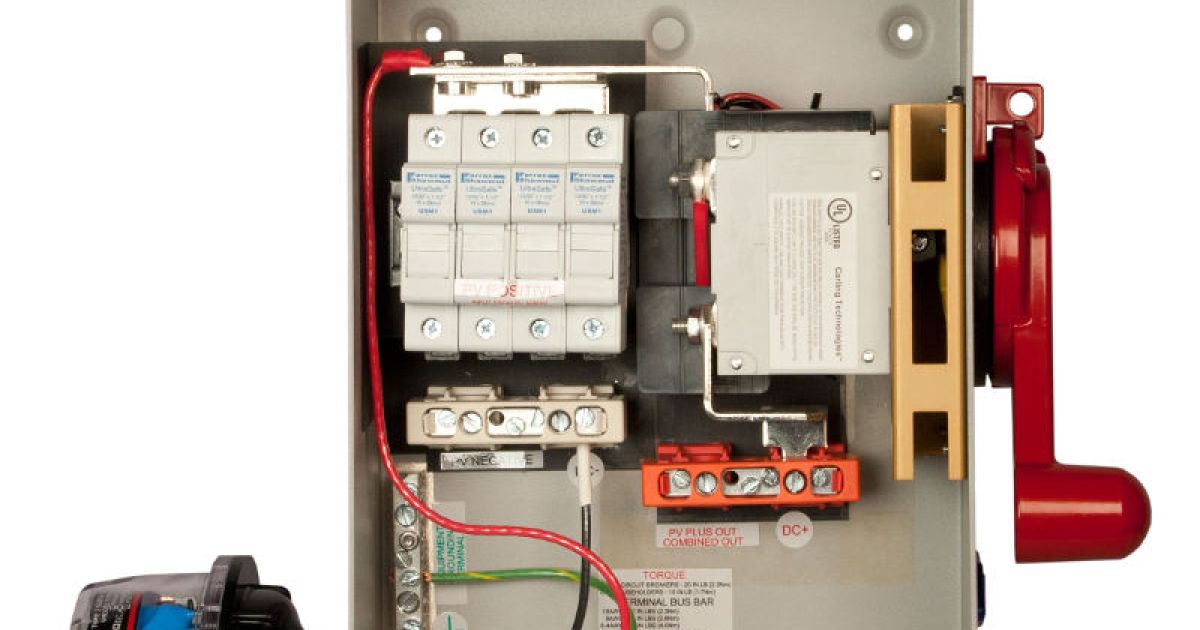

The MNPV4HV-DISCO 3R-DLX disconnecting 4-string combiner has 80 Amp bus bars, a 100 Amp load break rated switch and a third pole which acts as a feedback micro switch. It has a maximum voltage of 600V. Features Type NEMA-3R aluminum enclosure (no rust, won’t turn to dust) Transparent deadfront & colour coded busbar guards included Load-break rated 80 Amp DC disconnect Output Circuits – 1 Max. Output Wire Size – 1/0 Comes with four Fuseholders (MNTS) installed Comes with four 15A/600V fuses installed Warranty – 5 years CSA & UL-listed for Canada and USA Hardware Four 1/2 inch strain reliefs (MNSR-1000) Four ½” locknut One 10-32 X 7/8″ bolt One 10-32 keps nuts One terminal pin 18-22 AWG. One terminal pin 10-12 AWG. One ring terminal 10-12 AWG. One blue wrench One MNSPD-600 (Surge Protection Device)
