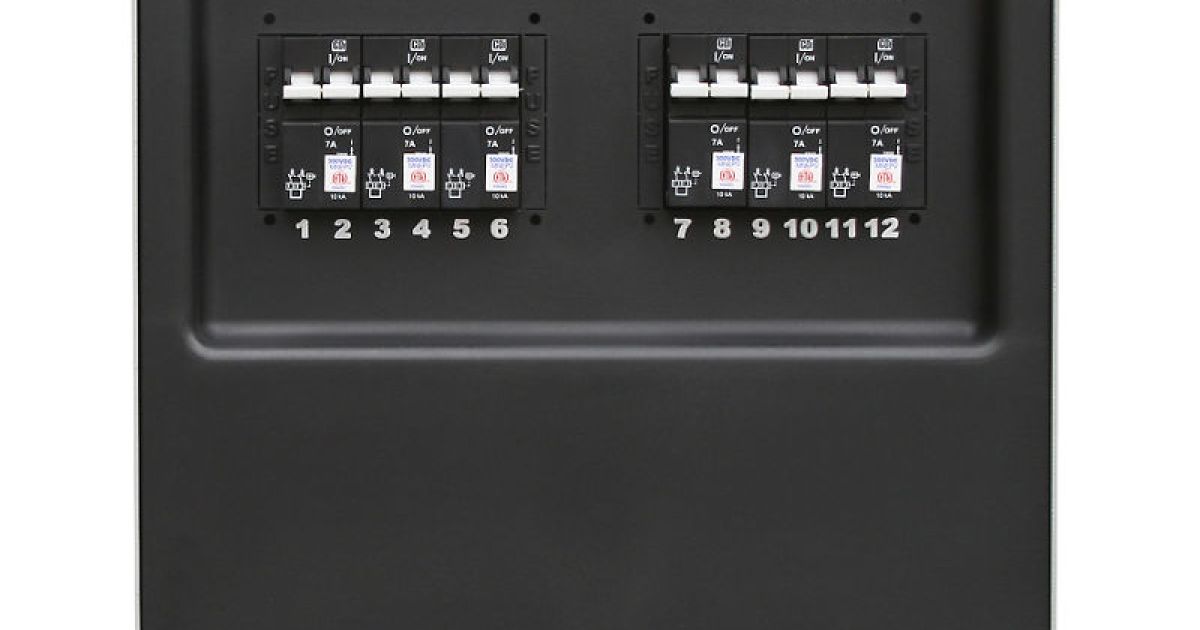

The MNPV12-250 is a 6-string PV combiner box for use with 200 and 250 VDC charge controllers. The combiner has room for six 300 Volt DC rated breakers, and can be split 3 3 for use with two charge controllers. It has a gray aluminum NEMA type 3R rainproof enclosure with insulating dead front. The combiner comes without breakers. The 15 Amp 300 Volt DC rated MNEPV15-300 breakers are normally used with this combiner. Features UL/CSA listed for North America All aluminum powder coated housing that won’t rust, rain-proof NEMA-3R rated Flip up cover that can stay in the open position during installation PV Negative bus bar with 15 useable openings Chassis ground bus bar with 15 useable openings Standard din rail to mount up to six 300V breakers 168 Amp tin plated copper bus bar to combine breaker outputs, can be split in two Dead front cover snaps into place after wiring is complete for safety Knockouts for PV in and PV out on bottom and sides 5-year warranty
