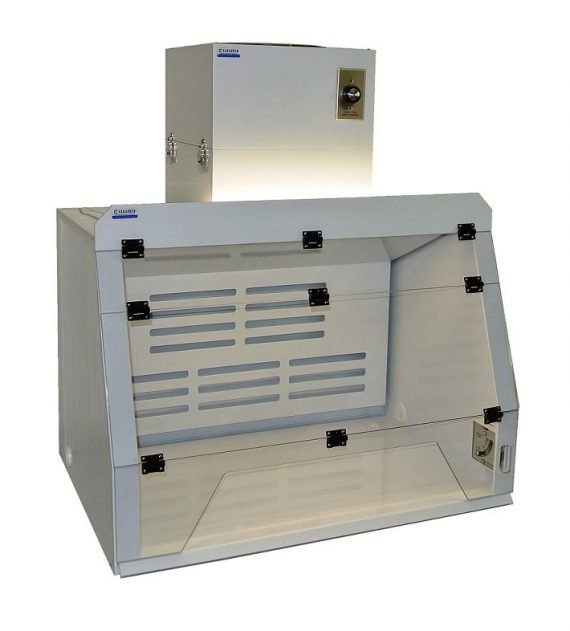

- Description Overall Dimensions: 32’’ W x 24’’ D x 25’’ H Overall Dimensions (Including Fan Module): 32” W x 24” D x 40’’ H ¼’’ Thick Polypropylene body and fan module housing. ¼’’ Thick Clear AR Polycarbonate sash. Both materials are chemically resistant to most common corrosive agents. Additionally, AR Polycarbonate has a high abrasion and impact resistance. The sash consists of two hinged access shields that increase airspeed by restricting air flow. Portable hoods can be positioned on nearly any bench or work surfaces. 8” OD Polypropylene Duct Port. Optional upgrade to 10” OD duct port. Double HEPA filters are 99.99% efficient at removing 0.3μm or larger particles. Fan module 0 to 580 CFM (at 0” W.G. static pressure) Removable airfoil, located along the front bottom, prevents turbulence. The slotted openings along the back of the hood, a/k/a the rear baffle, maintain a uniform airflow.
