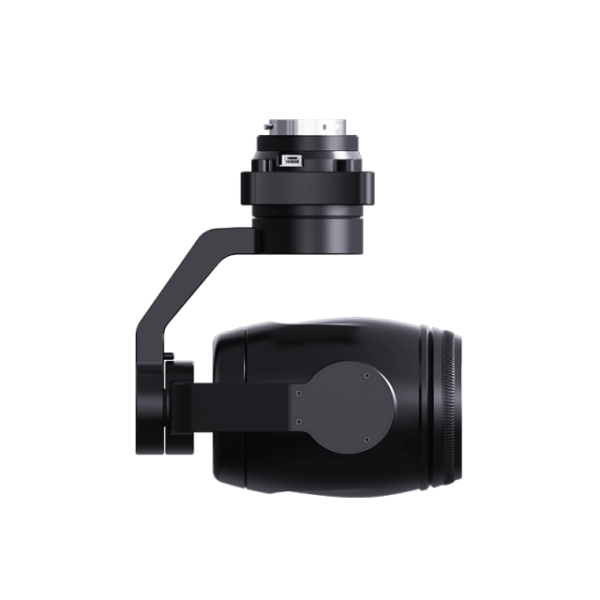

SIYI ZR30 4K 30X Optical Gimbal Camera

Overall –  Model: ZR30 Video Output Port: Ethernet,  Micro-HDMI Control Signal Input Port: – S.Bus, UART – UDP (Ethernet) Working Voltage: 11 to 25.2 V Power Consumption: Summit 20 W Working Temperature: -10 ~ 50 ℃ Dimension: 132*100*159 mm (including the quick release board) Weight: 628 g (including the quick release board) Quick Release Board- Dimension: 82*65*18 mm Weight: 38 g Gimbal- Angular Vibration Range: ±0.01° Controllable Pitch Angle: -90° to 25° Controllable Yaw Angle: -270° to 270° Roll Angle: -45° to 45° Camera- Lens: 30X Optical Zoom (180X Hybrid Zoom) Focal Length: 4.5±5% to 148.4±5% mm Image Sensor: 1/2.7 Inch, 8 MP effective resoultion Aperture: F1.3±5% to F2.8±5% FOV: Diagonal 65.4°, Horizontal 58.1° TF Recording Resolution: – 4K (4096 x 2160) @ 25 fps – 2K (2560 x 1440) @ 30 fps – 1080p (1920 x 1080) @ 30 fps – 720p (1280 x 720) @ 30 fps Video Storage Bitrate: 12 Mbps (H.265 codec) File Storage Format: FAT32 Image Format: JPG Video Format: MP4 Supported MicroSD Cards: MicroSD Class10, Max 128GB Still Photography Mode: Single Metering Mode: Evaluative metering
