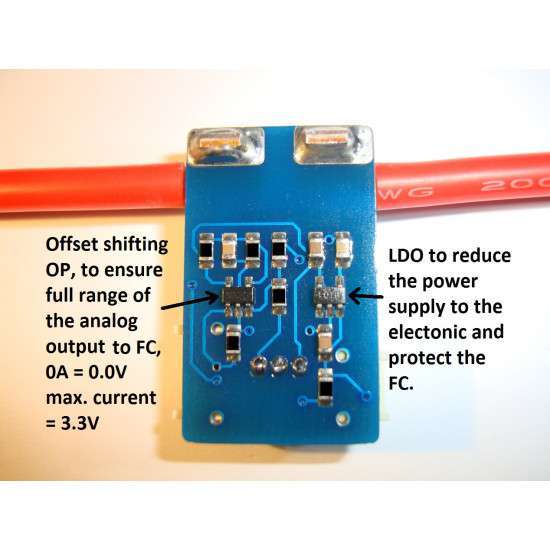

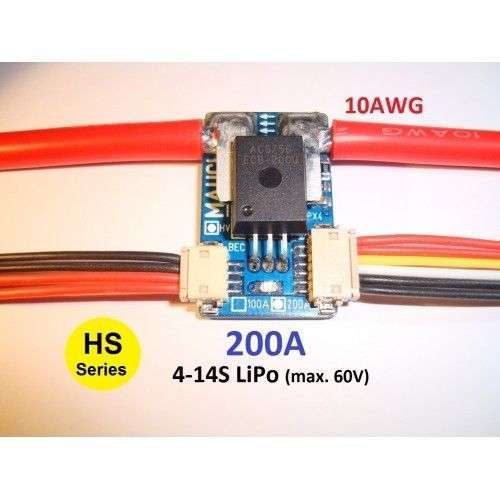

200A – Current measurement sensor board, based on Allegro Hall Sensor ACS-200U. This Sensor board needs a power supply. So please select the matching BEC according your preference from the BEC section. The BEC will also power the flight controller as well as the attached equipment like GPS, telemetry… etc. The voltage reading of the LiPo is optimised for up to 14S LiPo packs. Connected to the sensor are 2x10cm AWG10 wire (red) as a standard. The board comes with 10cm connection cable (DF-13-6p <-> DF-13-6p) to the FC. If you need a customized cable in different length, then please order it separately.
