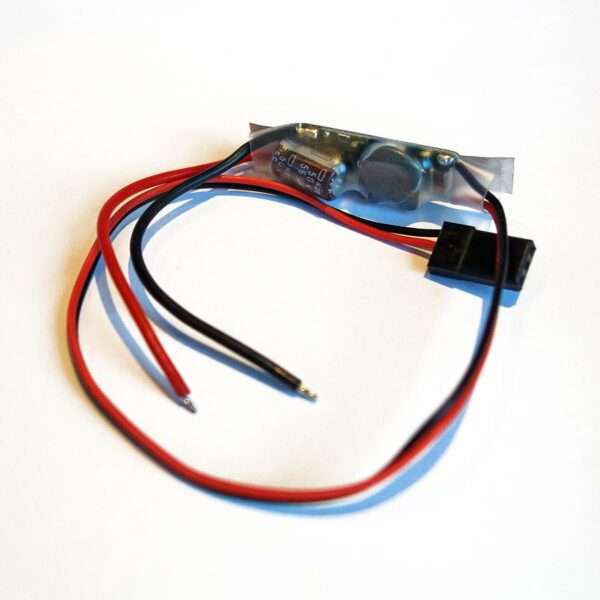

LM2596 HV Battery Eliminator Circuit. with voltage rating input4.5-50V to OUTPUT 3-35V. This step down power module is adjustable with a potentiometer. Features: Adjustment method: first correct input power (between 4.5-50V) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise), Input: IN input positive IN- input negative Output: OUT output positive OUT- output negative Static power consumption is only about 6mA. Connection: Welding, plus pin can be directly soldered after the PCB. Short circuit protection: current limiting, thermal protection, self-recovery. Non-isolated step-down switching regulator. Short circuit protection: Current limiting, self-recovery Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease) Non-synchronous rectification So FIRST CHECK VOLTAGE OF BEC. Package Includes : LM2596 HV BEC 4.5-50V to 3-35V
