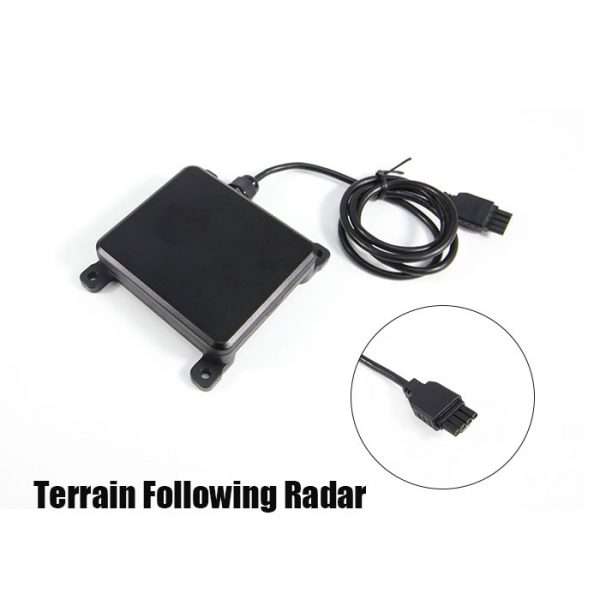

JIYI Ground weather Proof Terrain Follow Radar for JIYI K FC for Agricultural drones

Description Jiyi CAN HUB-12 Module The CAN HUB-12 module is mainly a CAN interface expansion device developed for Jiyi ’s new generation flight control K and its peripheral supporting peripherals. It supports 6-14S power input, 12V CAN output, 12V power output. The CAN HUB-12 interface has strong expandability. It integrates step-down power supply and expansion interface into one, which is easy to use. Terrain Following Radar The terrain following radar module uses millimeter-wave radar technology. Through continuous scanning of the radar, the aircraft can sense the terrain change in the flight direction, and adjust the flying height in time according to the terrain and crop height to achieve ground-like flight and ensure uniform spraying in flight . The ground-like radar module has stable detection performance and good environmental applicability, strong anti-interference ability, not affected by light, long detection distance, and has the characteristics of all weather and all day. Specifications : Product size: 82.4 x74.2x20mm Weight: <50g Modulation Mode: FMCW Center Frequency: 24.125GHz Usage Enviroment: No obstruction below Try to stay away from water mist Altimetry range: 0.3-15m (Relative to the ground) Altimetry Accuracy: 0.05m Output Frequency:  50Hz Power Comsumption: 1.5W @25℃ Working Voltage: 6-28V Working Temperature: -20℃ to 85℃ Protection Level: IP67 Output Interface: CAN
