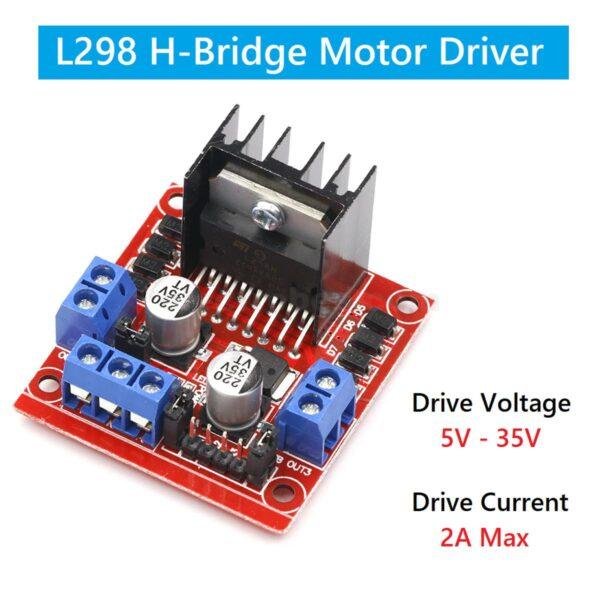

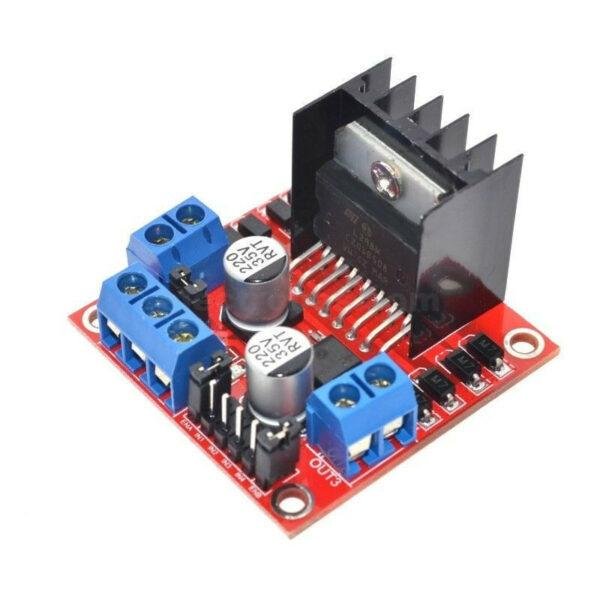

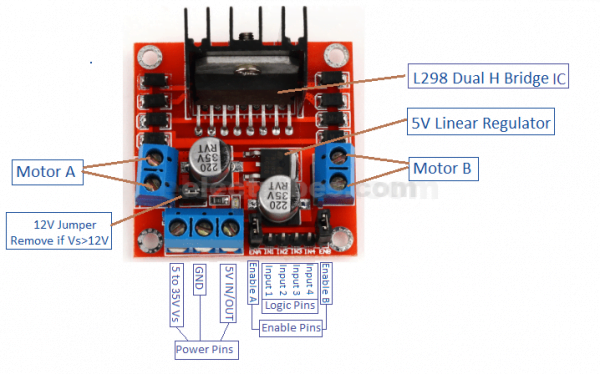

Description Specification Reviews L298N H-Bridge Motor Driver Module This L298N Based Motor Driver Module is a high power motor driver perfect for driving DC Motors and Stepper Motors. H Bridge Driver Module uses the popular L298 motor driver IC and has the onboard 5V regulator which it can supply to an external circuit. It can control up to 4 DC motors, or 2 DC motors with directional and speed control. This Stepper Motor Driver is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC and Stepper motors for micro mouse, line-following robots, robot arms, etc. An H-Bridge is a circuit that can drive a current in either polarity and be controlled by Pulse Width Modulation (PWM). Pulse Width Modulation is a means of controlling the duration of an electronic pulse. Specifications: Double H Bridge Drive Chip: L298N Logical Voltage: 5V Drive Voltage: 5V-35V Logical Current: 0-36mA Drive current: 2A (MAX single bridge) Max Power: 25W Dimensions: 43 x 43 x 26mm Weight: 26g SKU: 0753 Categories: Modules and Breakout Boards, Robotics & Machines, Stepper Motors & Drivers Tags: driver, H bridge, l298, L298N, module, motor, motor driver
