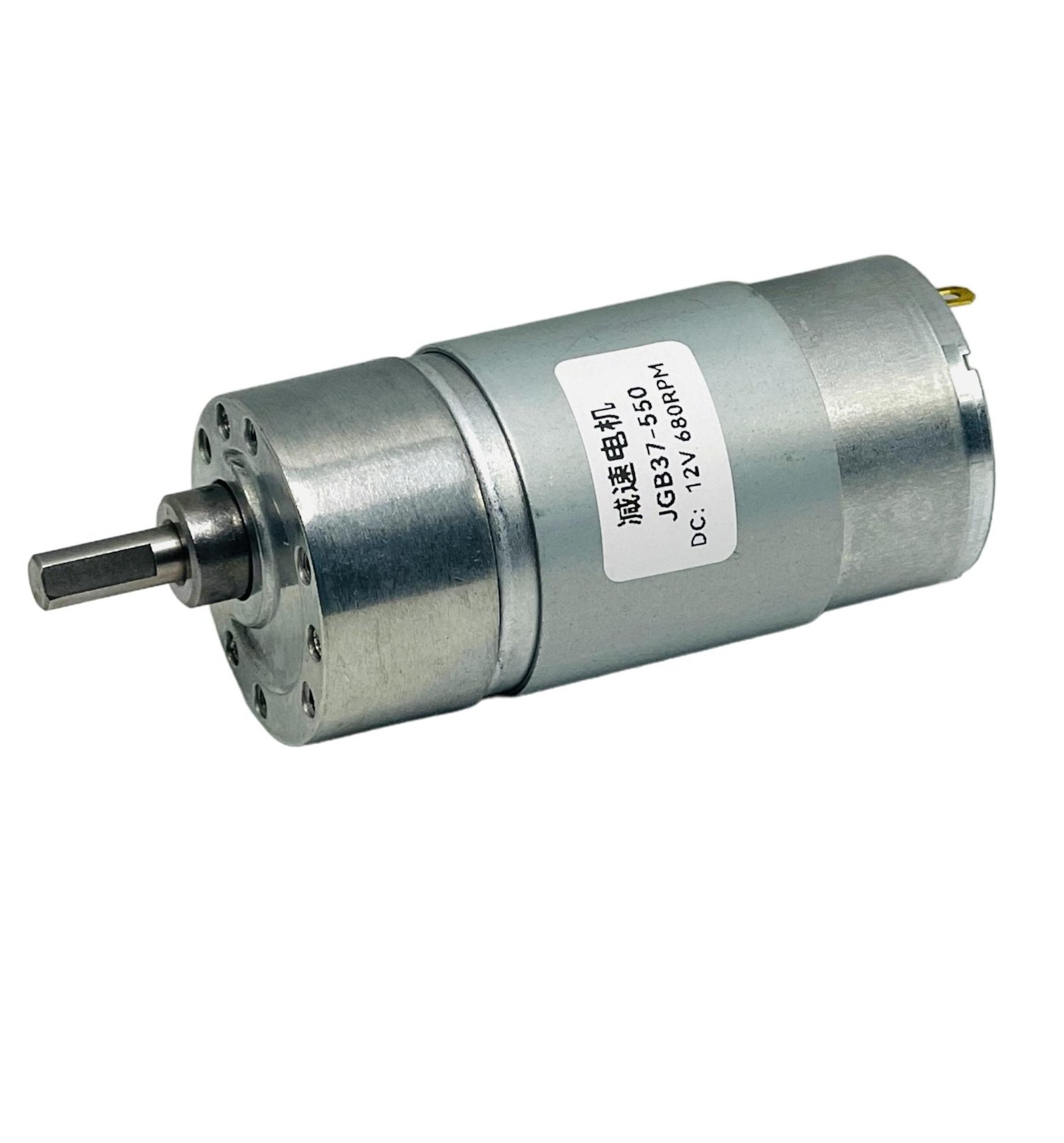

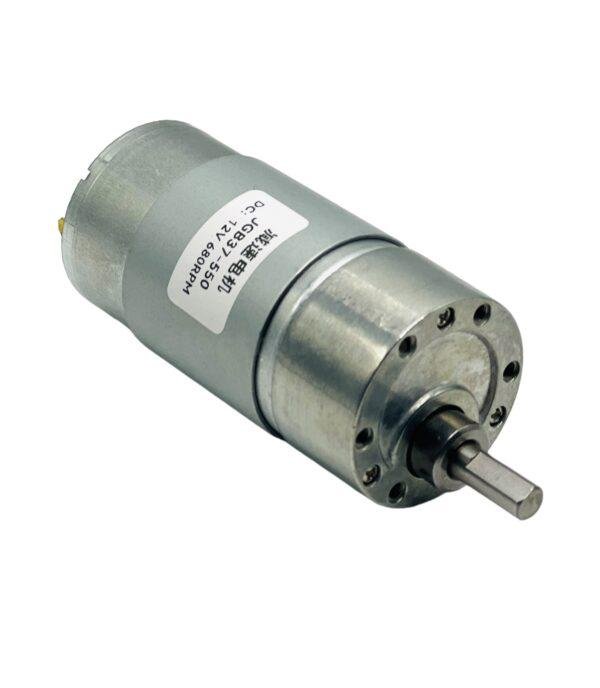

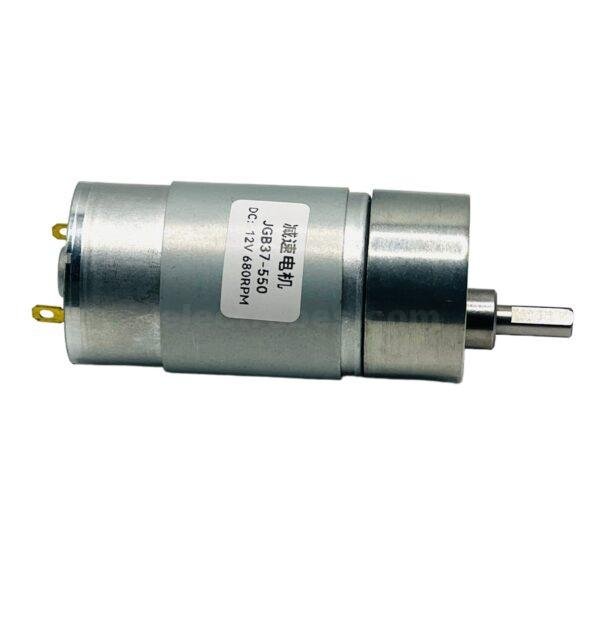

JGB37-550 DC 12V 680RPM High Torque Metal Gear DC Motor

Description Specification Reviews JGB37-550 DC 12V 680RPM High Torque Metal Gear DC Motor DC 12V 680 RPM High Speed High Torque Geared DC Motor has stable and reliable performance. Highlighted feature of this module is excellent quality and long service life. The JGBV37 550 DC motor can is power efficient. Typically, 6V-12V DC speed reduction gear motor like the JGB37-550 would be a type of geared motor that is designed for applications where it’s necessary to reduce the speed of the motor to obtain higher torque. Suitable for battery-operated devices or systems with limited power supply options. his motor is high-speed and high-power, and is generally powered by a lithium battery. Features: Voltage: 12V Current: 1.25 A Speed: 680 rpm Voltage: 6 V Current: 0.95 A Speed: 340 rpm No-load speed: 680 rpm Suitable voltage: 6V – 12V ( 340 – 680 rpm ) Weight: 320 gram Size (Length x Diameter): 76.5 x 36.5 mm Total length (including shaft): 105mm Shaft Diameter: 6mm (D-type) Shaft length: 14.5mm Note: that the current of the power supply must be at least 8A. If it is too small, it will affect the output power and torque of the geared motor, and like these high-density motors, it is not suitable for long-term continuous work. Package Included: 1 x Geared DC Motor SKU: 1198 Categories: Motor and Gears, Robotics & Machines Tags: 12V, 680 Rpm, 6V, DC, dc motor, dcmotor, electric, Gear, high, HIGH SPEED, high torque, mini, motor, shaft, small, speed, Torque
