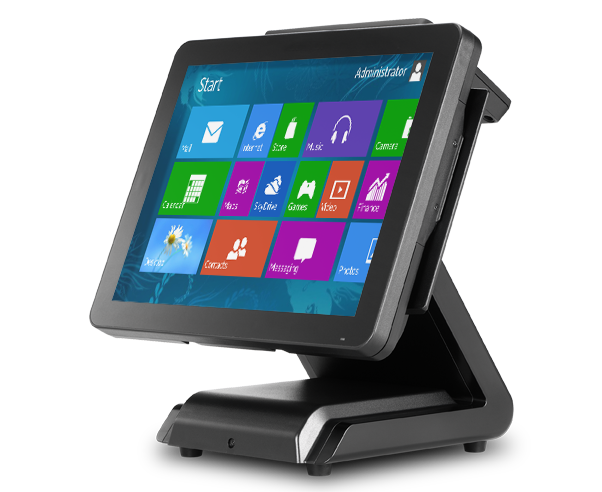

DescriptionPartner SP-1060 POS Touch i3 Detailed Specification Screen Size15.6″ Aspect Ratio4:3 Resolution1024 x 768 Brightness (typical)350 nits TouchPCAP Touch CPUIntel® Core™ i3-6100, H110 Chipset MemoryDDR4 4GB, 8GB, 16GB, 32G Storage1 x 2.5″ SATA HDD or SSD(Option) / 2nd 2.5″ SATA SSD or SSD (option) External I/O Interface2 x Serial ports, RS232 (DB9), 0V/5V/12V selected in BIOS (COM1, COM2)2 x Serial ports, RS232 (RJ45), 0V/5V/12V selection by JP (COM3, COM4)2 x LAN IEEE 802.3 10/100/1000 Gigabit Ethernet1 x RJ11 port with support for 2 cash drawers with 24V / 12V jumper setting1 x DC 12V out4 x USB 3.0, 2 x USB 2.01 x DC 12V input1 x Audio (1 x line-out)1 x HDMI1 x VGA Expansion I/O Options2 x USB 2.0 or LPT port 1 x 12V & 1 x 24V Powered USB Speaker1 x Speaker (3W) Peripheral OptionsMSR, IC Card Reader, Fingerprint, RFID, i-Button, VFD, USB 2nd Display, VGA/HDMI 2nd Display Wireless (option)Wi-Fi 6E Intel AX210 IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.2 Display Support3 Independent Displays (Main Display HDMI VGA) Spill & Dust ResistantIP54 Certified Operation SystemWindows 10 IoT Enterprise LTSC 21H2 (64bit) and newer versionUbuntu 18.04 SoftwareIntel V-Pro (i5/i7 CPU)S/W TPM 2.0 (BIOS)RAID (Q170 Chipset only) Power SupplyAC-In 100~240V / DC-Out 12V, 120W ReliabilitySystem Operating Temperature: 0~40°C/ 32~104°FSystem Humidity: 15% ~ 80%Storage Temperature: -20~60°C/ -4~140°F Dimensions (Wx Hx D)360 (W) x 335 (H) x 237 (D) mm / 14.33 x 13.19 x 9.3 inch Weight7.7 Kg / 16.98 Ibs
