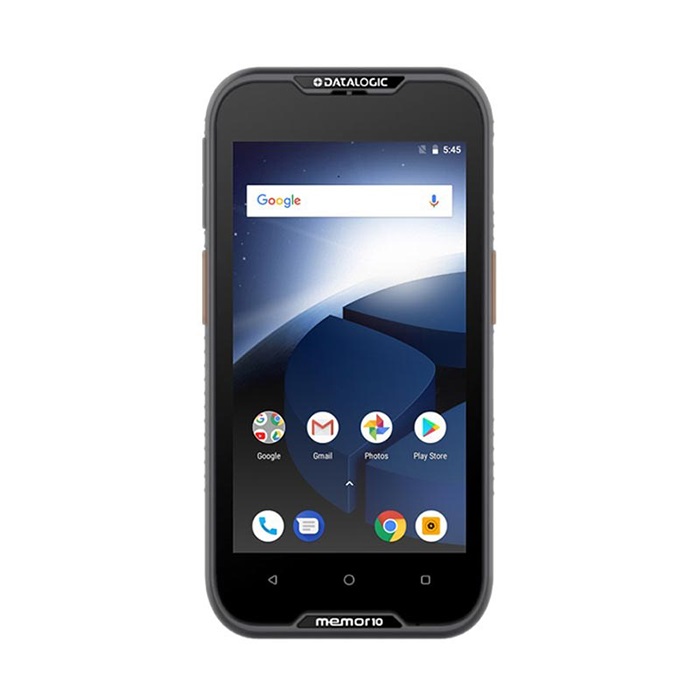

Datalogic Memor 10 Detailed Specification FEATURESUltra-Ergonomic, compact, and robust5-inch capacitive multi-touch HD display withDragontrail™ hardened glassAndroid 8.1 (Oreo) with Google Mobile ServicesWireless charging eliminates all contacts onthe device and cradleRuggedized with drop resistance to 1.5m / 5ftto concrete and IP65 sealingDual-band Wi-Fi including the latest 802.11acstandard and 802.11r/k for fast roamingFull suite of cellular connectivity for voice anddata, featuring LTE-Advanced/4G Assisted GPS for location-based appsBluetooth v4.2 short-range wireless technologyNFC for proximity communicationsAdvanced 2D ultra-slim imager with Datalogic’spatented ‘Green Spot’ technology for visualgood-read feedbackDatalogic’s SoftSpot™ technology for innovativetriggering through the touch displayChemical-resistant plastics/enclosuredesigned to withstand daily cleaning withharsh disinfectant solutionsEASEOFCARE Service Plans offer a wide rangeof service options to protect your investment,ensuring maximum productivity and ROI WIRELESS COMMUNICATIONS LOCAL AREA NETWORK (WLAN)IEEE 802.11 a/b/g/n/ac and 802.11 k/r/v;Frequency range: Country dependent, typically2.4GHz and 5GHz bands PERSONAL AREA NETWORK (WPAN)Bluetooth wireless technology v4.2 (ClassicBluetooth wireless technology and BLE) NFC COMMUNICATIONSupport for the following standards: ISO14443-4(type-A, type-B); ISO15693; Mifare; Felica WWAN/CELLULARLTE-Advanced/4G ; Cat 6 DECODING CAPABILITY 1D / LINEAR CODESAuto discriminates all standard 1D codesincluding GS1 DataBar™ linear codes. 2D CODESAztec Code, Data Matrix, Han Xin Code, MaxiCode,MicroQR Code, QR Code, UPU FICS, USPSIntelligent Mail POSTAL CODESAustralian Post, Japan Post, KIX Code, PLANET,POSTNET, Royal Mail Code (RM4SCC) STACKED CODESMicro-PDF417, PDF417, GS1 DataBar Composites,GS1 DataBar Expanded Stacked, GS1 DataBarStacked, GS1 DataBar Stacked Omnidirectional ELECTRICAL BATTERYReplaceable battery pack with rechargeableLi-Ion batteries; 3.8v; 4,100 mAh (15.6 Watthours) WIRELESS CHARGINGQi Compliant; 10 Watt fast charging ENVIRONMENTAL DROP RESISTANCEWithstands drop from 1.5 m / 5.0 ft ontoconcrete (with rubber boot); Withstands dropsfrom 1.2 m / 4.0 ft onto concrete (without rubberboot). Tested onto steel/concrete according toIEC 68-2-32 Method 2 and MIL STD 810G Transitdrop test. TUMBLES Withstands 1000 hits from 0.5 m / 1.6 ft and 250hits from 1.0 m / 3.2 ft per IEC 600-2-32 withrubber boot; Withstands 600 hits from 0.5 m /1.6 ft per IEC 600-2-32 without rubber bootPARTICULATE AND WATER SEALING IP65 CHEMICAL RESISTANCEChemical cleanser and industrial oil resistant(both Standard and Healthcare models) HEALTHCARE CLEANABLEIsopropyl Alcohol, Hydrogen Peroxide, Clorox®Bleach; applicable for both the device and cradles TEMPERATUREOperating: -20 to 50 ºC / -4 to 122 ºFStorage/Transport: -30 to 70 ºC / -22 to 158 ºF INTERFACES INTERFACESHigh-Speed USB 2.0 Host and Client with USBType C connector SENSORS VIBRATION Software programmable for duration and intensity ACCELEROMETER 3-Axis accelerometer to detect orientation GYROSCOPE Senses angular velocity AMBIENT LIGHT Auto adjusts display backlight PROXIMITY Auto deactivates display when close to face PHYSICAL CHARACTERISTICS DIMENSIONS15.5 x 7.8 x 1.87 cm / 6.1 x 3.07 x 0.73 in DISPLAY5-inch IPS HD resolution 720 x 1280;LED backlight; Touch Screen: 5 points multi-touchcapacitive panel with Dragontrail hardened glass KEYSPhysical Keys: 2 side scan keys; Power On/Off; Volume Up/Down; 3 user programmableAndroid™ keys WEIGHTWith Battery: 285.0 g / 10.0 oz READING PERFORMANCE CAMERAResolution: 13 megapixels; Illumination: Usercontrollable LED flash; Lens: Autofocus SCAN ENGINE2D Ultra slim area imager (supports 1D / 2Dcodes);Datalogic’s ‘Green Spot’ for good-read feedback;Depth of Field: 8.5 to 50 cm / 3.3 to 19.7 independing on bar code density and type;Resolution: VGA (640 x 480 pixels);Illumination: White LEDs; Aiming: 650nm VLD;Field of View: 48°H x 34°V SYSTEM EXPANSION SLOTSMicro-SD card slot: Compatible with Micro SD-HCcards; Data transfer up to 48 Mbps; Useraccessible MEMORYSystem RAM: 3 GB; eMMC Flash: 32 GB MICROPROCESSOR2 GHz Octa-core OPERATING SYSTEMAndroid v8.1 with GMS REAL-TIME CLOCKTime and date stamping under software control
