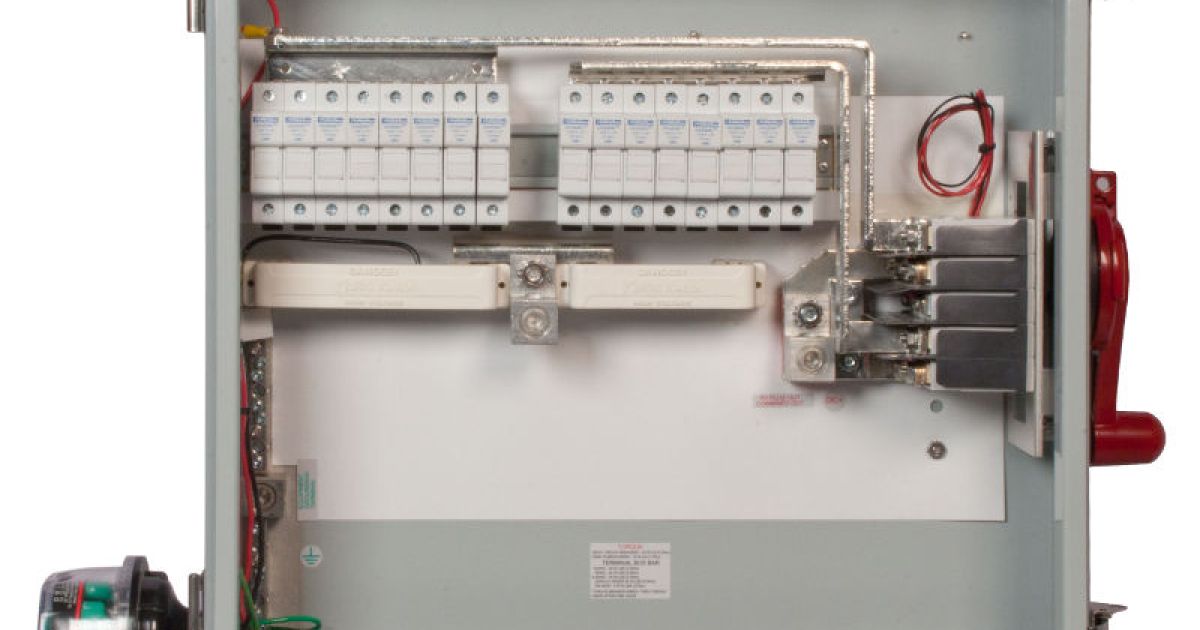

The MNPV16HV Disco 4X is a disconnecting combiner for up to 16 strings, a 230 Amp load break rated or 115 Amps load break rated for busbars and switches. Rated for 600 Volt DC, in a water-tight NEMA-4X housing. Features Convertible configuration (field configurable) 16 strings combined for up to 230 Amps single pole disconnect 8 8 strings, separate PV and PV- for use with 2 inverters (2 pole 115A disconnect) 8 strings plus, 8 strings minus for use with non-isolated inverters (2 pole 115A 600VDC disconnect) Disconnect switch has built in shunt trip with positive feedback Transparent deadfront & color coded busbar guards included Birdhouse compatible Optional PV connected power supply Load break rated Optional AC connected power supply for redundancy Type 4X aluminum enclosure (no rust, won’t turn to dust) with conduit/strain relief holes 90o C connections Comes with fuseholders (MNTS) installed Comes with 15A/600V fuses installed Warranty – 5 years UL-listed (no CSA-listing) Hardware One MNSPD-600 (Surge Protection Device) Sixteen 1/2″ strain reliefs (MNSR-1000) Twenty 1/2″ locknuts Fourteen hole plugs with gaskets Two 10-32 X 7/8″ screws Two 10-32 X 3/6″ screws Two 3/8 – 16 X 7/8″ bolts Twelve 10-32 keps nuts One terminal pin 18-22 AWG One terminal pin 10-12 AWG One white insulator One blue wrench (MNWRENCH)
