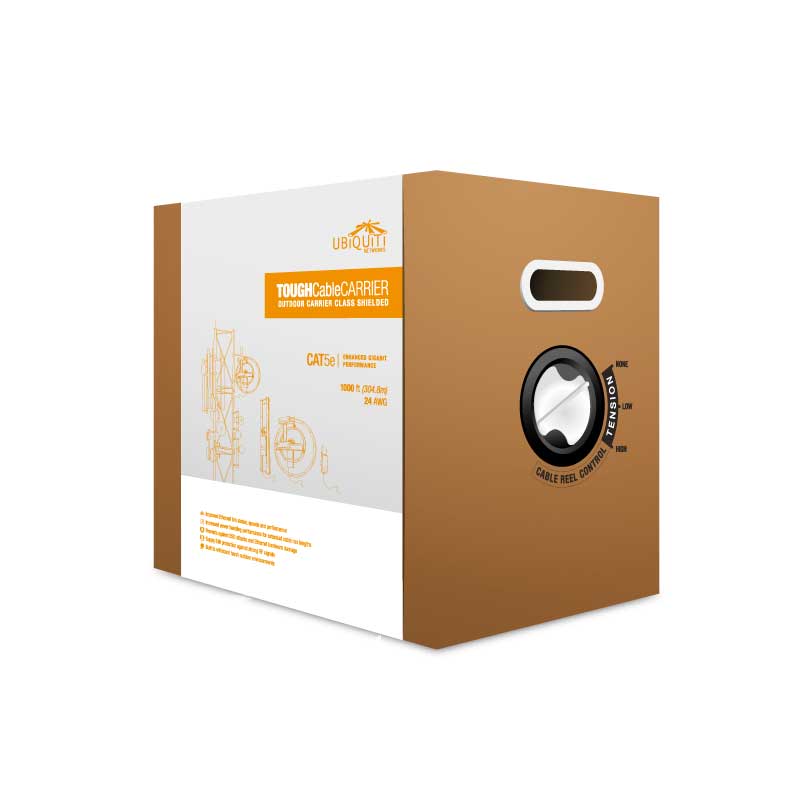

UBIQUITI toughCable Carrier Cat5e Outdoor carrier class shielded Anti-crosstalk divider 1000 ft (304.8 m)

Description Industrial-grade Ethernet cable that protects your network from elemental and electrostatic damage The UISP-Cable-Carrier is a Category 5e cable that delivers multilayered elemental protection with a primary braid shield and a weatherproof jacket that prevents damage from rain, snow, and other harsh climatic conditions. The cable is also equipped with a drain wire and internal foil shielding to protect it from electrostatic discharge (ESD), and its anti-crosstalk divider preserves signal integrity, allowing the cable to maintain Gigabit Ethernet link rates even when electromagnetic interference is present Mechanical Box Dimensions 330 x 425 x 340 mm (13 x 16.7 x 13.4″) Box Weight 16 kg (35.3 lb) Cable Lenght 305m (1000ft) Cable Color Black Cable Type CAT5e, Shielded Ethernet Support Up to 1 Gbps Conductor Wire Gauge 24 AWG Conductor Solid Bare Copper Conductor Diameter 0.500 ± 0.005 mm Insulation Type Solid Polyethylene Insulation Thickness Avg. 0.295 mm Min. 0.29 mm Insulation Diameter 1.16 ± 0.02 mm Separation (Polyester Wrapping) Thick: 0.025 mm, Extent: 20 mm Anti-Crosstalk Divider LDPE: 4.2*0.3 mm Cable Shield (Aluminum Foil) Thick: 0.060 mm, Extent: 20 mm ESD Drain Wire 0.4 TC Rip Cord Yes Secondary Cable Shield (Braid) 16*8*0.16AA Density: 95% Jacket Material Polyethylene Jacket Thickness Avg. 0.52 mm Min. 0.46 mm Jacket Outer Diameter 6.8 ± 0.30 mm Jacket Color Black Storage Temperature -30 to 75° C (-22 to 167° F) Installation Temperature -20 to 60° C (-4 to 140° F) Operation Temperature -40 to 80° C (-40 to 176° F) Standards ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2)
