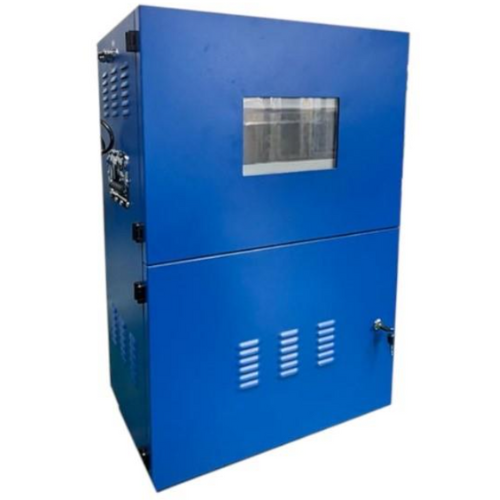

Description Overview GAOTek’s Advanced Gas Analysis System with UV DOAS & Multi-Gas Detection is an advanced emissions monitoring solution designed for industrial applications like boiler exhaust, pollution sources, and high-humidity/temperature gas analysis. It employs UV DOAS, IR, electrochemical, and laser technologies to measure up to 50 gas components (e.g., SO₂, NOₓ, CO, H₂S) with high accuracy, minimal drift, and no cross-interference. The system offers real-time data via a 7-inch touchscreen, supports wireless data transfer, and operates in harsh conditions, 14°F to 104°F (-10°C to 40°C). With interfaces like 4 mA to 20 mA, RS485/ModBus, and relay outputs, it’s ideal for continuous emission monitoring in compliance with environmental regulations. Features Detects SO₂, NO, NO₂ with low limits: 0.621 µg/ft³ (49.213 ft optical path) [1 mg/m³ (15 m optical path)] UV technology avoids moisture/dust interference Multi-gas detection: NO and NO₂ can be measured at the same time, without cross-interference or a converter DOAS PLS technology, minimum zero drift and span drift Modular design No moving optical parts; resistant to vibration Available version with external UV bench for use with toxic or corrosive gases. Spectrum automatic adjustment technology; light source adopts to the pulse source Technical Specifications Measurable Gases Nitric Oxide (NO), Nitrogen Dioxide (NO₂), Sulfur Dioxide (SO₂), Oxygen (O₂), Carbon Monoxide (CO), Ammonia (NH₃), Chlorine (Cl₂), Hydrogen Sulphide (H₂S), Etc. Measuring Principle UV DOAS, IR, Electrochemical (O₂), Laser (CO) Linearity ≤ ±1.5% FS Repeatability ≤ ±0.5% FS Zero & Span Drift ≤ ±2% FS Response Time (T90) < 10 sec; typically, < 30 sec Working Temperature 14°F to 104°F (–10°C to 40°C) Warmup Time Approx. 10 min (no pre-heating required) Sample Gas Interface Ø 0.24 in (Ø 6 mm) Bi-lok Atmospheric Pressure Effect ±0.13% of reading per mmHg Sample Gas Flow 0.13 gal/h to 0.53 gal/h (0.5 L/min to 2.0 L/min), Fluctuation < 25% Sample Gas Pressure ±1.45 psi (±0.1 bar) from environmental pressure Sample Temperature 32°F to 122°F (0°C to 50°C) Sample Gas Humidity Non-condensing (under same temperature) 4 mA to 20 mA Input Interface 3 × configurable, max. load 100 Ω 4 mA to 20 mA Output Interface 5 × configurable, max. load < 800 Ω Switch Input Interface 6 × configurable Relay Output Interface 14 × configurable, 30 VDC, 2A Communication Interface 1 × RS232, 1 × RS485 (ModBus) Installation Rack 19” Power Supply 100 VAC to 240 VAC Power Consumption Typical: 100W; Max: 200W Outline Dimensions 5.2 × 19 × 14.9 in (13.2 × 48.3 × 37.8 cm) 7 × 19 × 16.2 in (17.7 × 48.3 × 41.2 cm) Weight 22 lb to 26.5 lb (10 kg to 12 kg)
