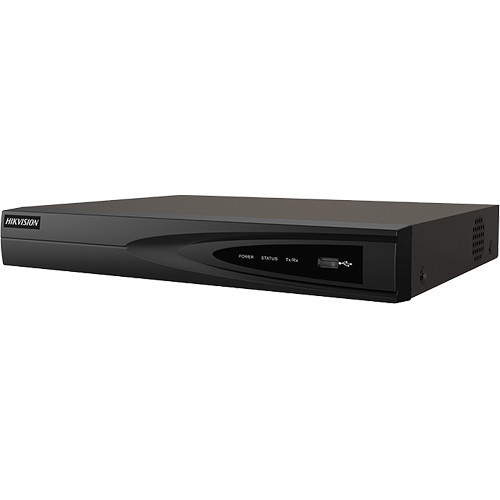

Hikvision DS-7604NI-Q1 4 Channel NVR 8mp Supported

Video And Audio IP Video Input4-ch HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz Video Output ModeHDMI/VGA simultaneous output Incoming Bandwidth40 Mbps Outgoing Bandwidth80 Mbps Audio Output1-ch, RCA (Linear, 1 KΩ) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω) Decoding Decoding FormatH.265 ,H.265,H.264 ,H.264 Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) Synchronous Playback4-ch Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF Network Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface PoE Interface4-ch Power≤ 50W StandardIEEE 802.3 af/at RAID RAID TypeNo Auxiliary Interface SATA1 CapacityUp to 8TB capacity for each disk USB Interface2 × USB 2.0 Alarm In/OutN/A (4/1 is optional) General Power Supply48 VDC, 1.35 A Consumption≤ 10 W (without enabling PoE) Working Temperature-10 to 55º C ( 14 to 131º F) Working Humidity10 to 90 % Chassis1U Dimension (W × D × H)320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″) ≤ 1 kg (2.2 lb)
