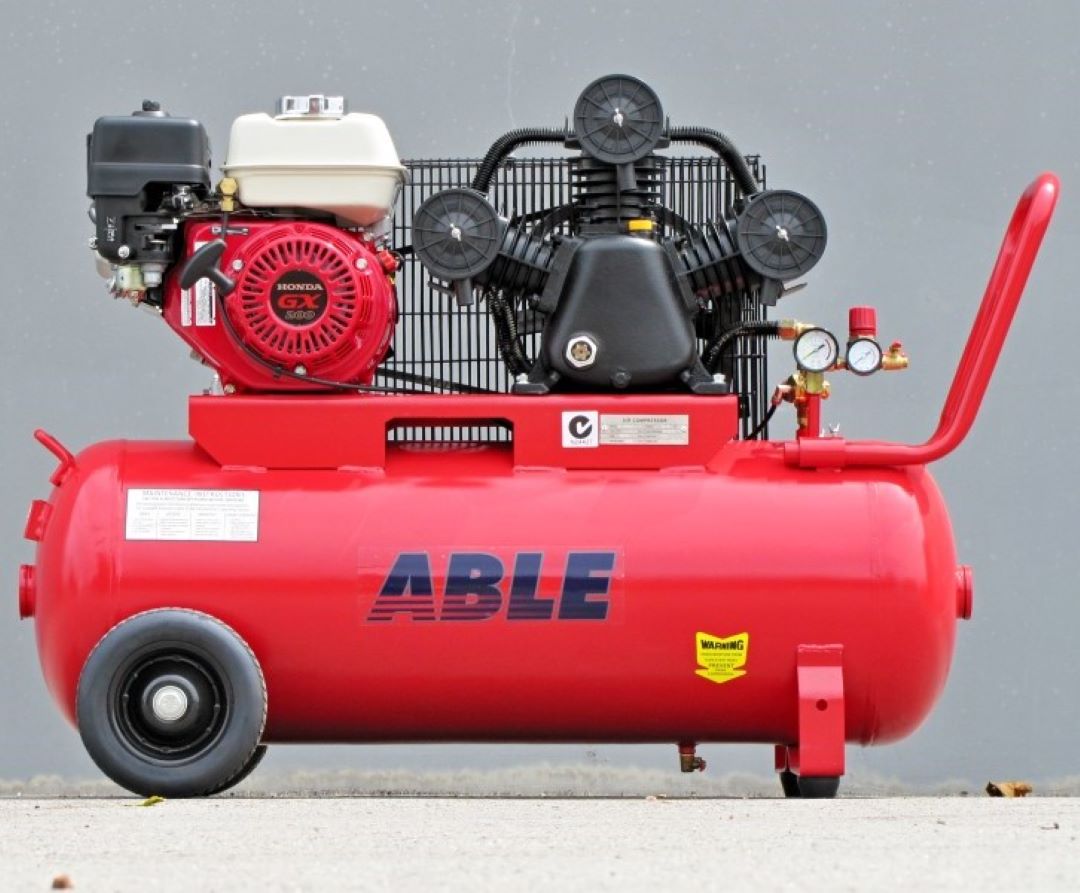

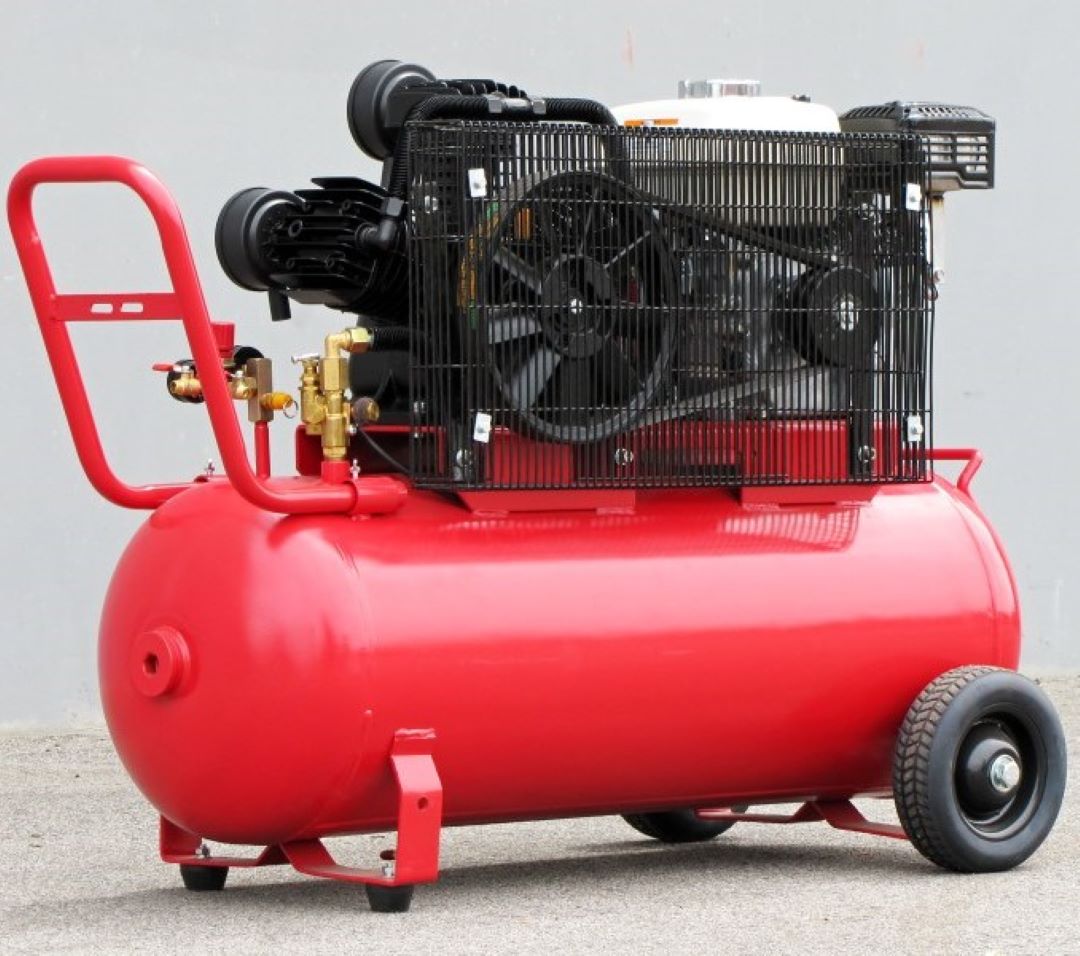

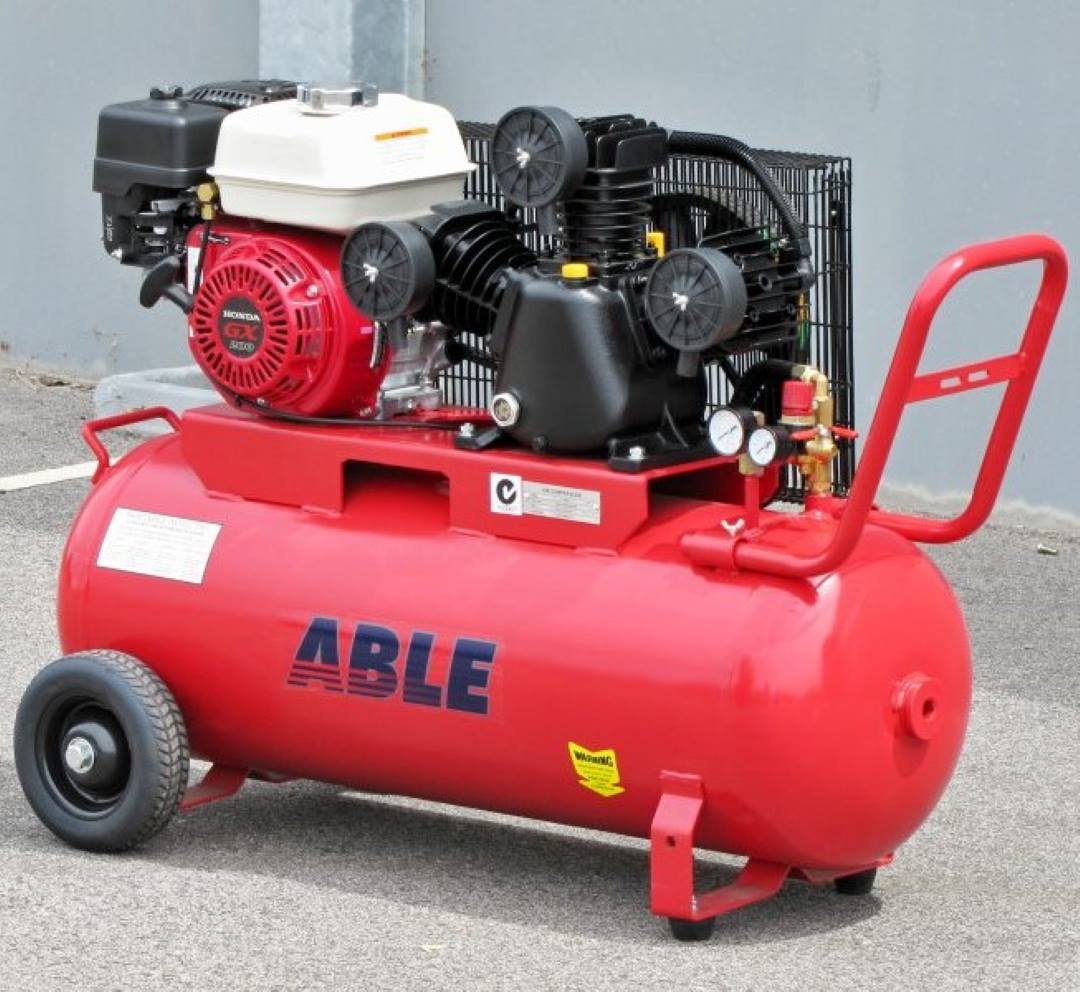

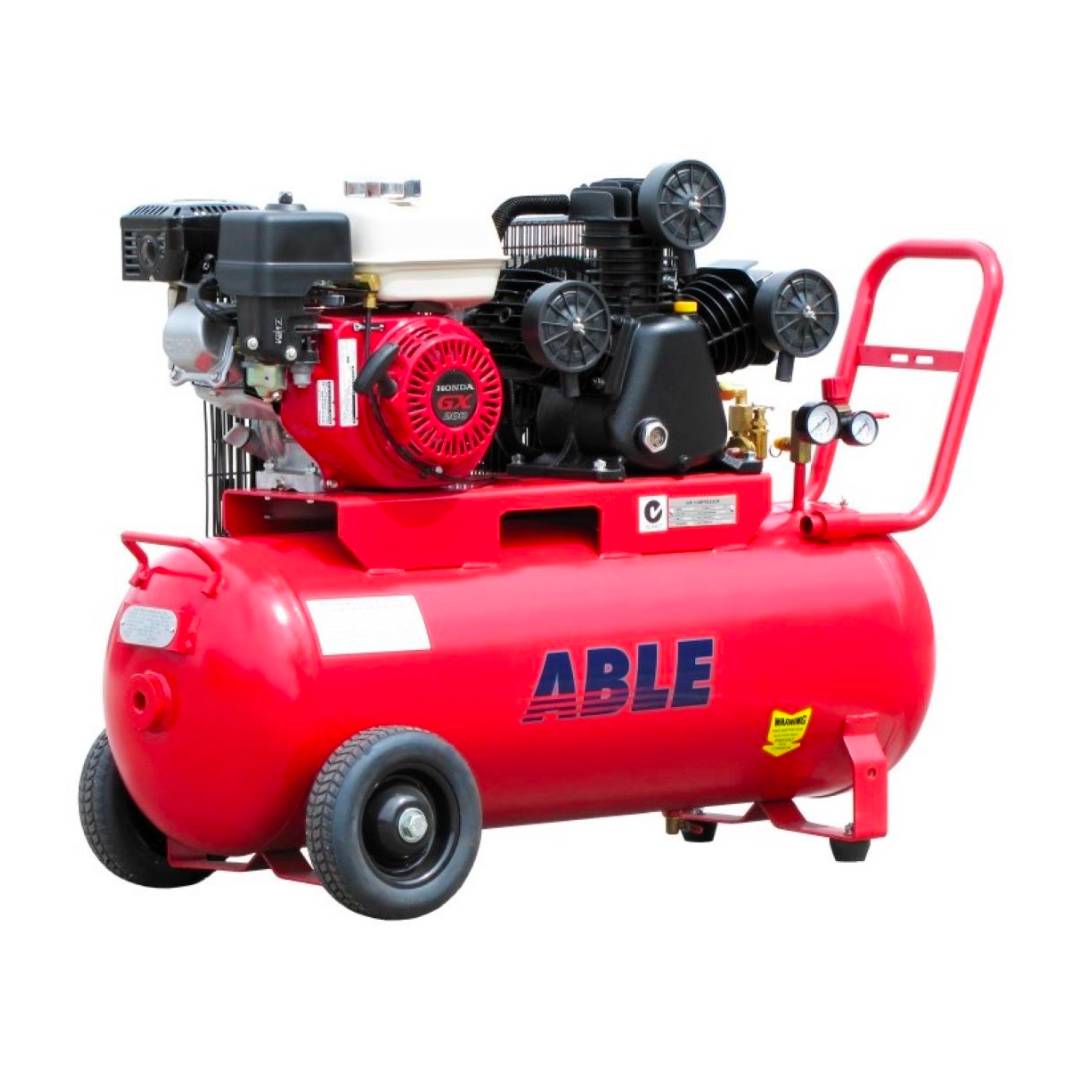

This 18cfm petrol piston air compressor is built strong from durable cast iron and runs at a low RPM to minimize wear and tear. Our pressure vessels are registered with Worksafe compliance and built to Australian Standard AS1210 with a design life of 20 years. Petrol Motor: 7HP 4 Stroke (Unleaded Fuel) Engine Lubricant: SAE10W30 (above CC grade) Maximum RPM: 3000 RPM Rotation direction : Clockwise, (View from flywheel) Compressor: Three Cylinder, Cast Iron Construction, 145PSI Compressor Drive: Twin V-Belt Compressor RPM: 900RPM Compressor CFM / Lt per min: 18 CFM /525lt/min (FAD 13CFM) Pressure Gauge : Pressure gauge MPA SERVICE DETAILS : PUMP OIL: ISO100 250 Hourly/6 Monthly PUMP AIR FILTER: AIRAW65 x3 DRIVE BELT : A47 (A1194Li) x2 * DRAIN TANK DAILY ** WARRANTY VOID IF NO ISOLATION MOUNT Check Pump Head Bolts Every 60 Days – 23Nm Air Pump : MCPU-AW65 Belts : 2 x A49 (13X1245) Additional Information Air Flow (CFM) 18 Air Pressure (PSI) 145 Air Tank Size (L) 100 Engine Power (Hp) 7 Cooling Air Cooled Dryer Not included in this model Air Outlet Size 2 ? 1/4" Ball Valves Weight (kg) 134 Dimensions (cm) 116L x 44W x 90H
