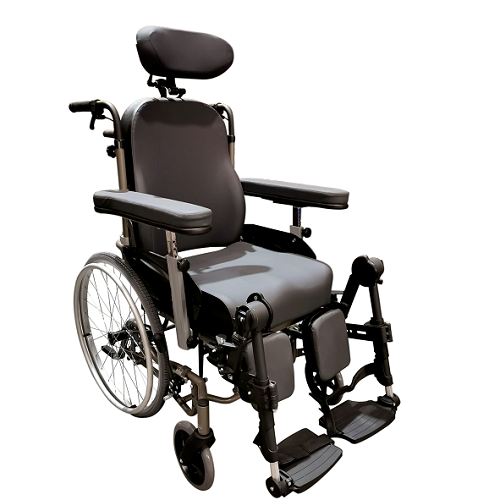

ONYX TILT IN SPACE SELF PROPEL WHEELCHAIR RANGE

Description SPECIFICATIONS Overall length: 1030mm (with footrests) Overall length: 830 – 870mm (without footrests) Overall width: 18″: 612mm – 20″: 750mm Overall height 1250mm (with headrest) Overall height: 710 – 780mm (with folded backrest, without armrests) Seat width: 18″: 457mm – 20″: 508mm Seat depth: 490mm (with cushion) Seat height: 570mm Backrest height: 550 – 585mm Backrest angle: 90Ëš – 120Ëš Front Wheels: 8” – 200mm Rear Wheels: 24” – 600mm Distance between footrest and seat: 280mm (with legrest at default) Legrest angle: 30Ëš range (200Ëš – 230Ëš) Foot plate angle: 80Ëš – 100Ëš Static stability downhill: 10Ëš Static stability uphill: 15Ëš Static stability sideways: 12Ëš Obstacle climbing: 60mm Product Weight: 38kg Maximum Weight Loading: 135kg
