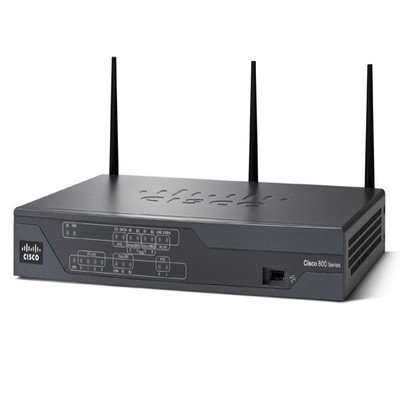

Cisco 880 Integrated Services Routers

Product Description Lan FeaturesUp to 4 Fast Ethernet LAN ports for local computers and other devicesUp to 2 Power over Ethernet (PoE)ports availableWAN●  Fast Ethernet●  Multimode VDSL2 and ADSl2/2 over ISDN with ISDN backup●  Multimode VDSL2 and ADSl2/2 over basic telephone service●  ADSL2/2 over ISDN with ISDN backup●  ADSL2/2 over basic telephone service with ISDN backup●  VDSL2 over basic telephone service with ISDN backup●  Multimode G.SHDSL (2- and 4-wire support) with ISDN backup●  Fast Ethernet and 3G WAN for Code Division Multiple Access (CDMA) and high-speed downlink packet access (HSDPA)LAN switchManaged 4-port 10/100BASE-T with autosensing Media Device In/Media Device Cross-Over (MDI/MDX) for auto crossoverStandard 802.11g/n access point based on IEEE 802.11n draft 2.0 standardOptional on all modelsConsole or auxiliary portRJ-45One USB 1.1 port for advanced security features such as security tokens or USB flash memory●  One USB 1.1 port on Cisco 880 Series Routers●  USB devices supported:◦   USB eTokens◦   USB flash memoryISDN BRI S/TAvailable on:●  Cisco 886, 886VA, 887, 887V, 888, and 888EA for out-of-band management and dial backup or primary3G express card modemAvailable on:●  Cisco 881G, 886G, 887G, 887VG, and 888G for out-of-band management and backup or primary●  Cisco 888G for out-of-band management and backup or primaryNote: Cisco 887VG currently ships with HSPA modem only.External power supplyUniversal 100 to 240 VAC input; 60W, 12 VDC outputPhysical dimensions and weightProduct dimensions, nonwireless models (H x W x D):●  1.9 x 12.8 x 9.8 in. (48 x 325 x 249 mm) (includes rubber feet)●  1.75 x 12.8 x 9.8 in. (44 x 325 x 249 mm) (without rubber feet)Product dimensions, wireless models (H x W x D):●  1.9 x 12.8 x 10.4 in. (48 x 325 x 264 mm) (includes rubber feet)●  1.75 x 12.8 x 10.4 in. (44 x 325 x 264 mm) (without rubber feet; excludes antennas)●  Weight: 5.5 lb (2.5 kg) maximumPowerProduct power specifications:●  AC input voltage: 100 to 240 VAC●  Frequency: 50 to 60 Hz●  Maximum output power: 60W●  Output voltages: 12 VDCOptional internal PoE with external adapter:●  Maximum output power: 80W●  External output voltage: 48 VDCEnhanced security●  An integrated stateful and application inspection firewall provides network perimeter security.●  High-speed IPsec3DES and AES encryption offers data privacy over the Internet.●  Intrusion prevention enforces security policy in a larger enterprise or service provider network.●  Content filtering offers category-based URL classification and blocking, thus providing increased productivity and better use of company resources.Data rates supported●  802.11b: 1, 2, 5.5, 6, 9, and 11 Mbps●  802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps●  802.11n: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, and m0-m15Environmental operating range●  Nonoperating temperature: -4 to 149°F (-20 to 65°C)●  Nonoperating humidity: 5 to 95% relative humidity (noncondensing)●  Nonoperating altitude: 0 to 15,000 ft (0 to 4570m)●  Operating temperature◦   At sea level: 32 to 104°F (0 to 40°C)◦   Up 10,000 ft: 32 to 77°F (0 to 25°C)◦   Derating 2.7°F/10,000 ft (1.5°C/1,000 ft)●  Operating humidity: 10 to 85% relative humidity (noncondensing)●  Operating altitude: 0 to 10,000 ft (0 to 3000m)Related
