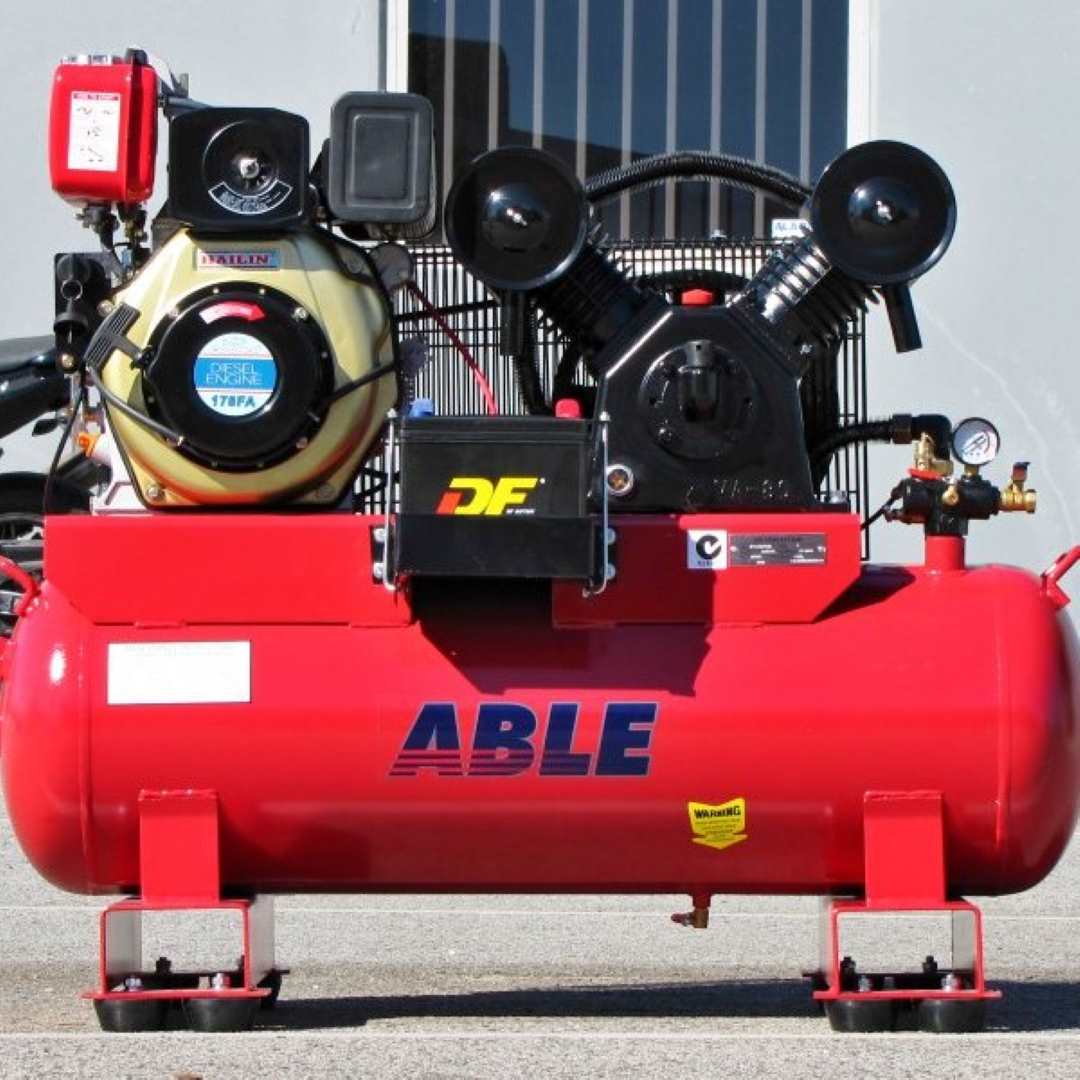

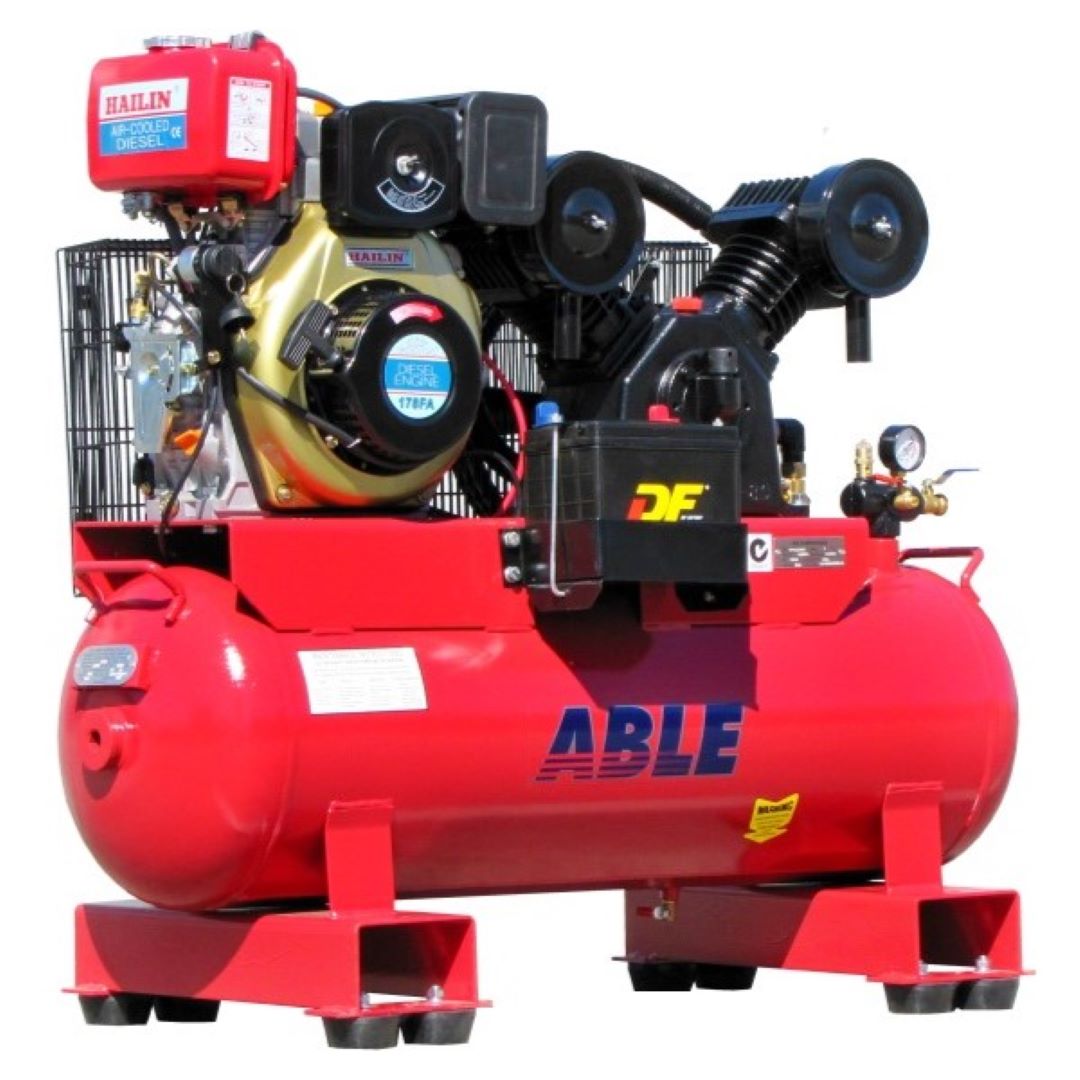

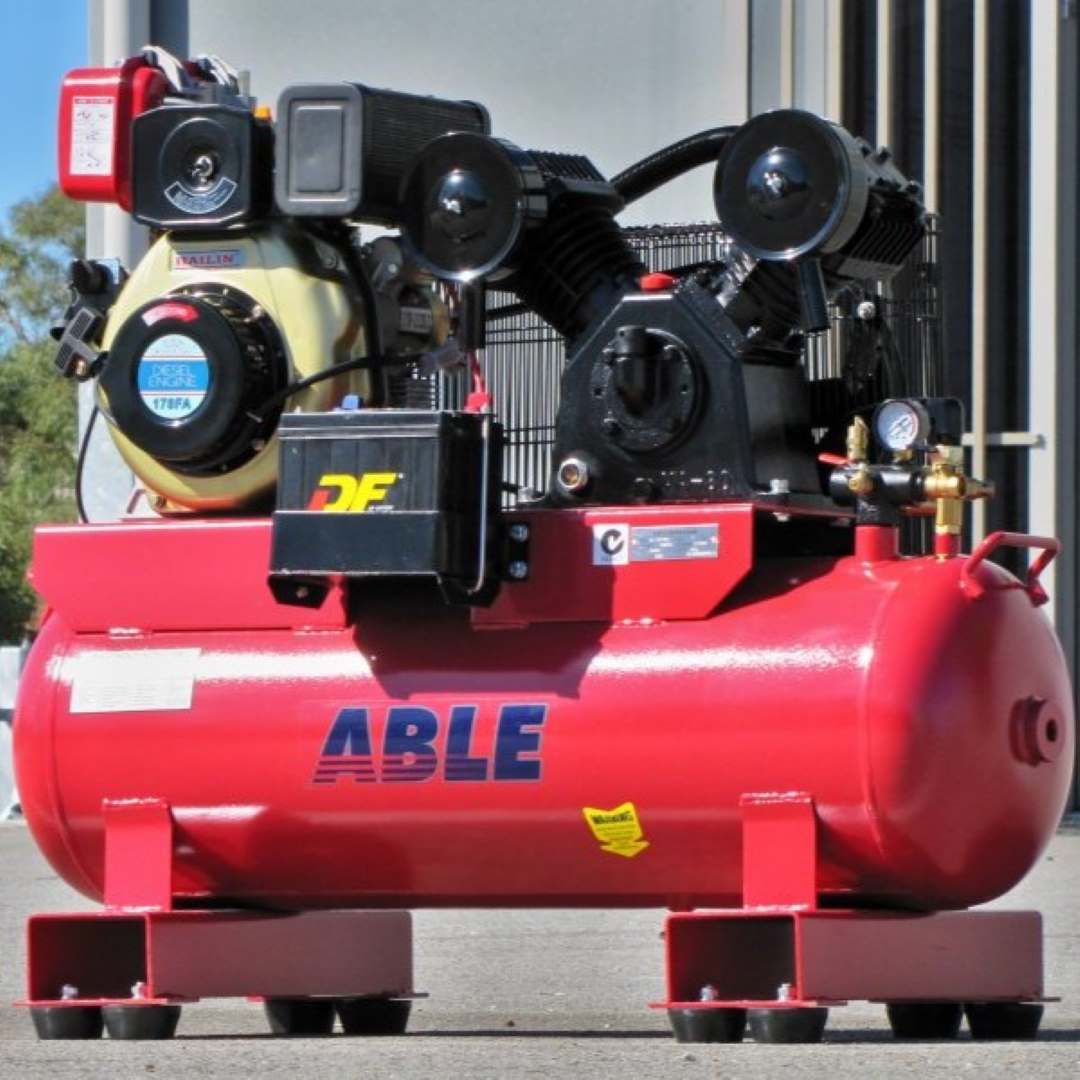

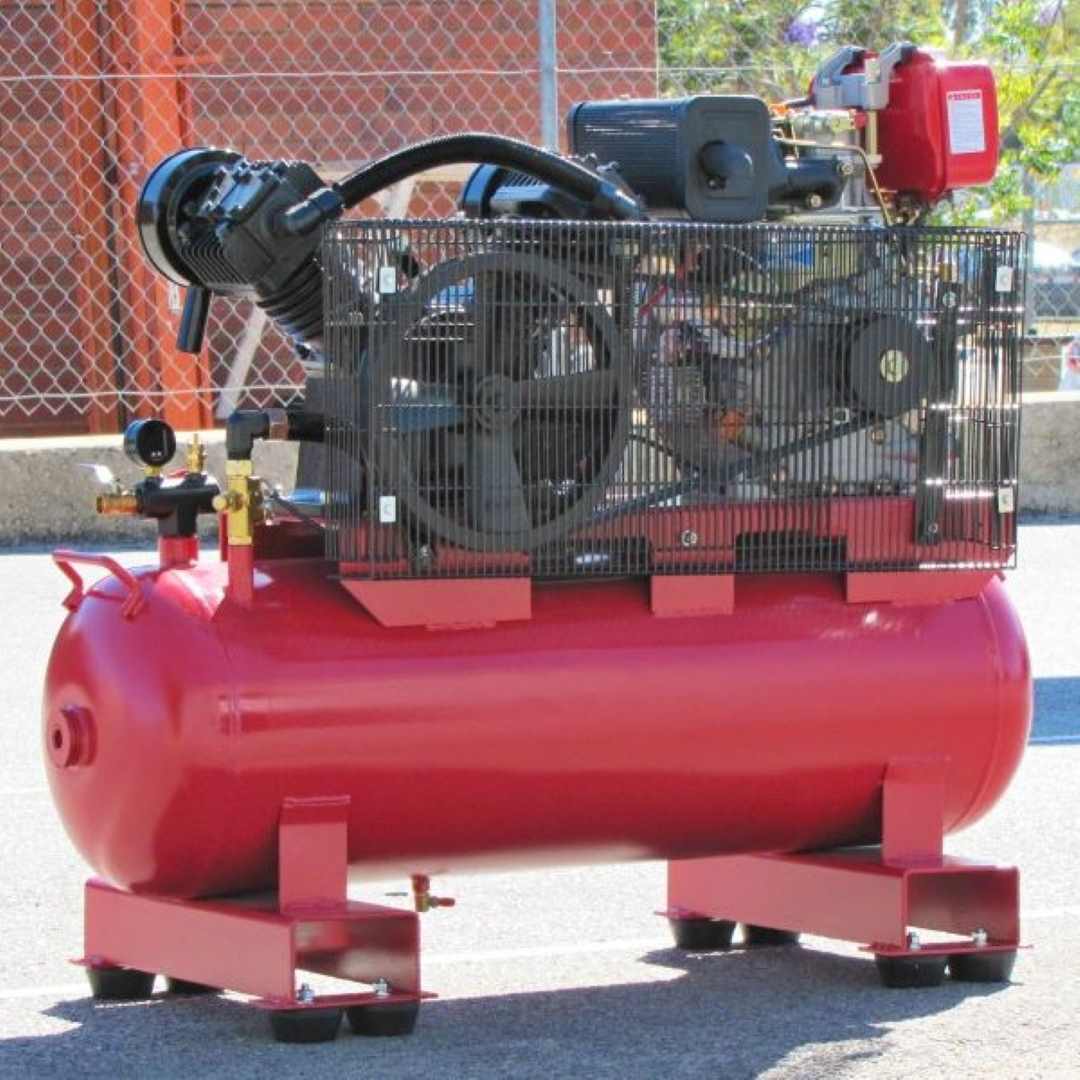

7HP 20CFM Compressor Diesel 100 Litre 145PSI

The MC10070D diesel air compressor is fully compliant with mine site regulations, featuring a pressure vessel design registered for mine use. Its cast-iron air pump ensures long-lasting performance, while the high-pressure pump makes it ideal for even the toughest applications. Powered by a reliable and economical diesel engine, this unit is designed for durability and efficiency. This unit is easy transport thanks to a strong structure and forklift points. Built to Australian Standards with a 20 lifespan, the MC10070D can withstand years of heavy commercial use! Engine Type: Single Cylinder, 4-Stroke, Air-Cooled, Direct Injection, Diesel Engine Compression Ratio: 19:01 Starting System: Electric Starter, Battery Included Rotation Direction: Clockwise, (View From Flywheel) Lube: SAE10W30 (Above CC Grade) Battery: With 12V-18Ah Compressor: Two Cylinder, Cast Iron Construction Compressor Drive: Twin V-Belt Compressor RPM: 770 RPM Compressor Displacement: 20CFM / 566 LPM Compressor FAD: 15CFM / 425 LPM Pressure Gauge: High Pressure Gauge MPA/PS Outlets: I X 1/2″, 1 X 1/4″ Ball Valves ADR COMPLIANT CERTIFIED TANK Additional Information Air Flow (CFM) 20 Air Pressure (PSI) 145 Air Tank Size (L) 100 Engine Power (Hp) 7 Cooling Air Cooled Dryer Not included in this model Weight (kg) 2082 Dimensions (cm) 112L x 124W x 52H
