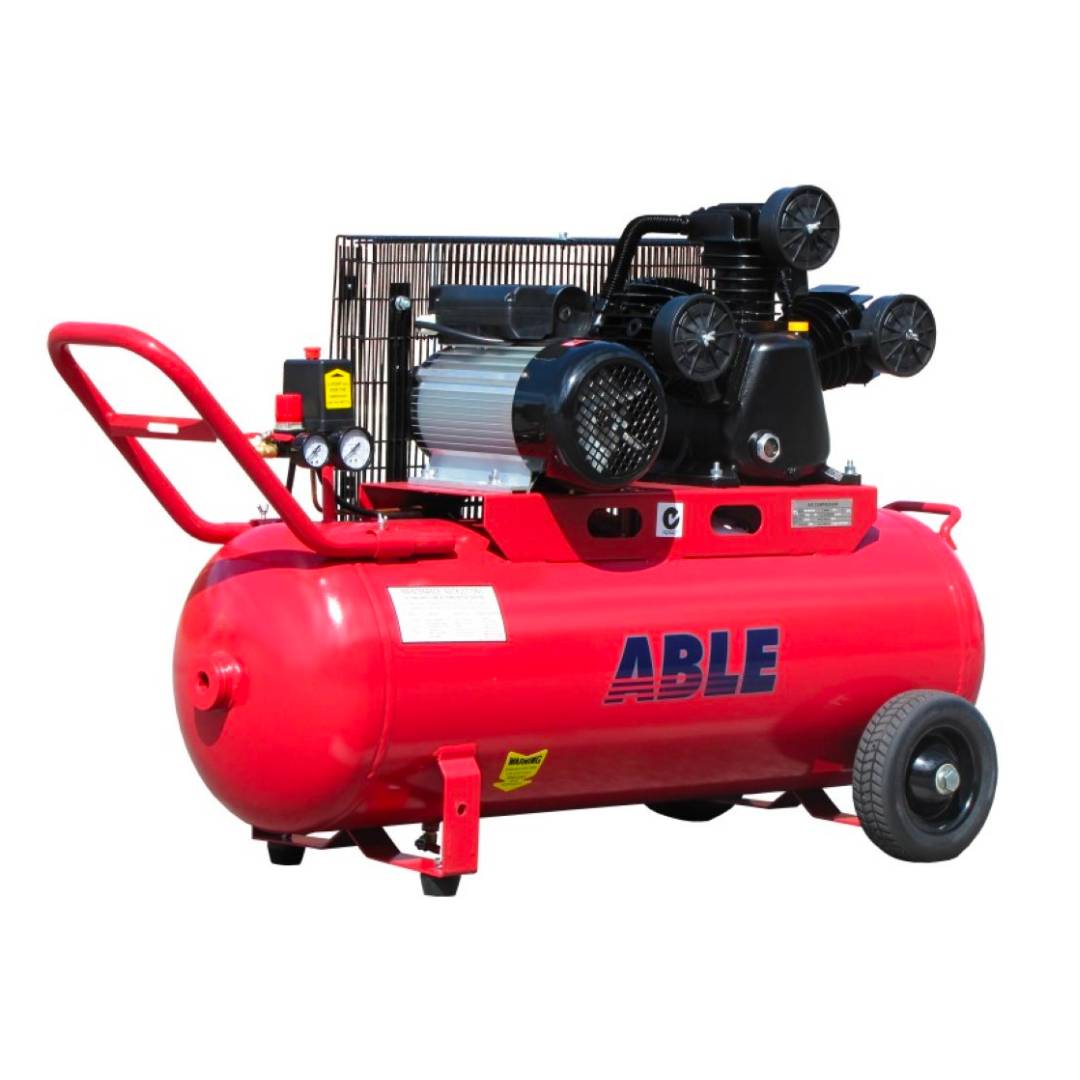

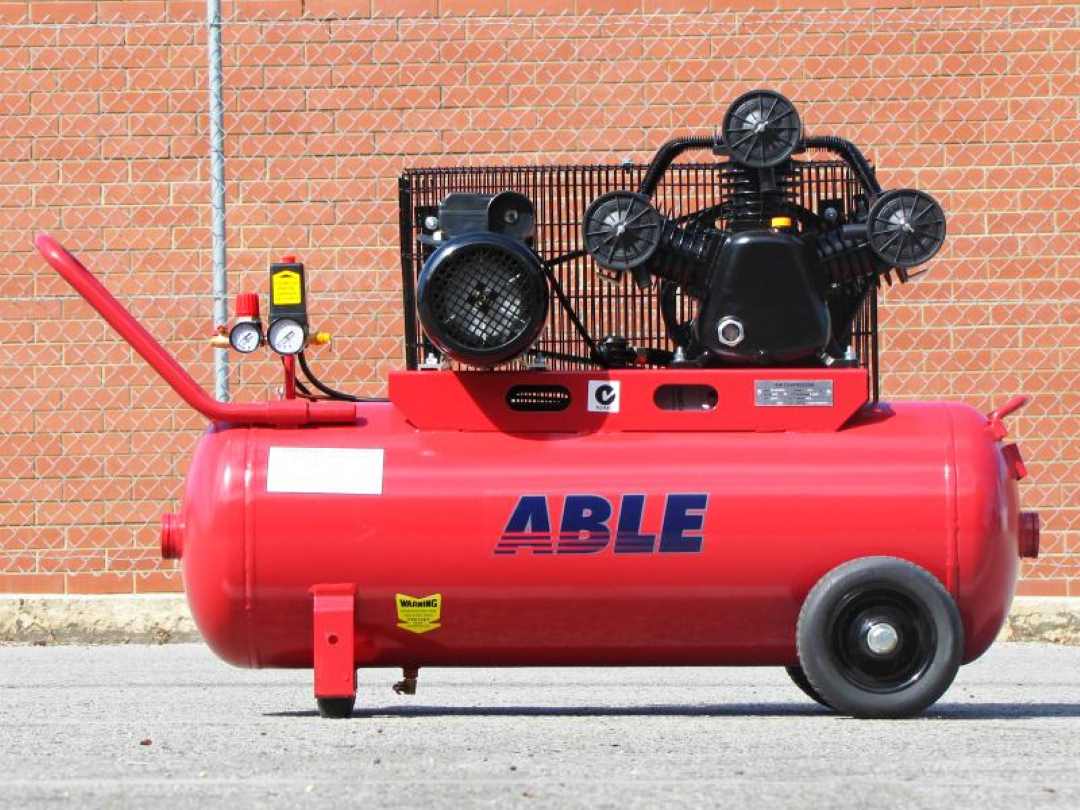

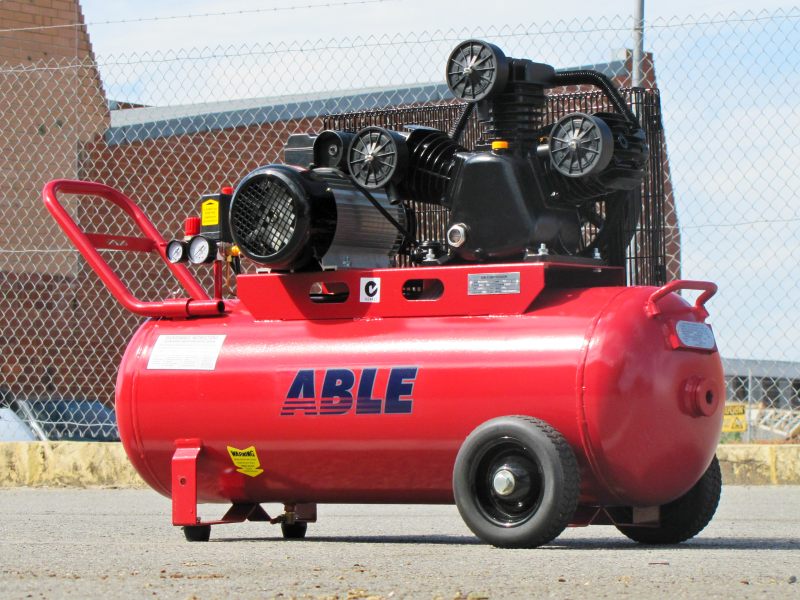

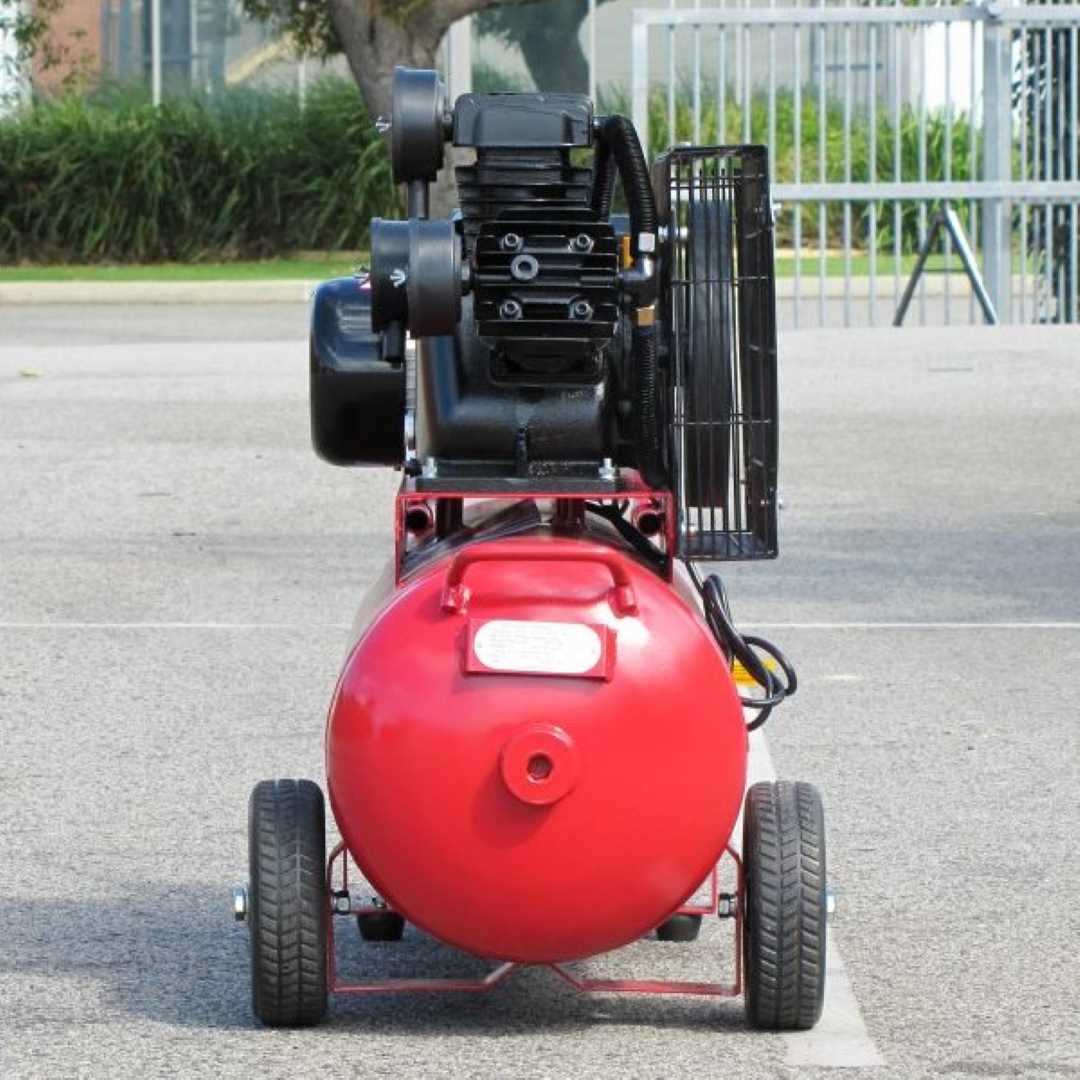

16CFM 3HP 3 Cylinder Single Phase Air Compressor

This 18CFM Electric Piston Compressor 240V is built to last. It’s constructed from tough cast iron instead of aluminium. Its pump runs at lower RPM which makes the engine run cooler and lasts longer. Additionally, its raised head and multiple cooling fins also allow better heat dissipation. This air compressors uses copper connecting pipes and stainless steel reed valves for durability and longevity. Our pressure vessels are designed and built to Australian Standard AS1210 with a design life of 20 years. Electric Motor: Single Phase 240volt, 15Amp, 3HP IP Rating: IP44 Electric Motor Rpm: 2600 RPM Rotation direction : Clockwise, (View from flywheel) Australian Approved Plug: Single Phase 3 pin Aust.15AMP Decibel Rating: 79dB @ 1m / 69dB @ 7m Compressor: Three Cylinder, Cast Iron Construction, 125PSI Compressor Drive: Twin V-Belt Compressor RPM: 900RPM Compressor CFM / Lt per min: 18 CFM /525lt/min (FAD 13CFM) Pressure Gauge : Pressure gauge MPA Outlets: 2 x 1/4″ Ball Valves Additional Information Air Flow (CFM) 16 Air Pressure (PSI) 125 Air Tank Size (L) 100 Engine Power (Hp) 3 Voltage (V AC) 240 Dryer Not included in this model Weight (kg) 135 Dimensions (cm) 122L x 44W x 86H
