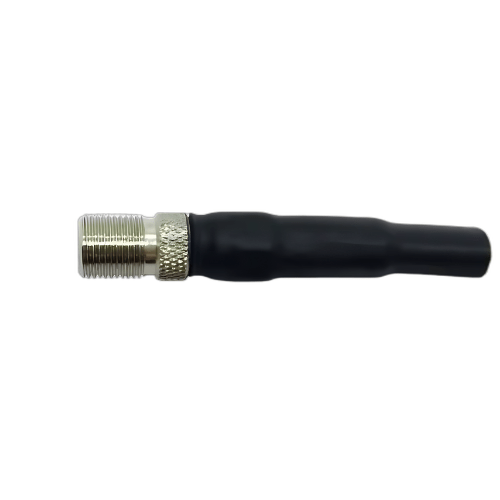

ANTC TV Antenna Coaxial Cable Assembly – GAOTek

Description Technical Specifications Frequency Range DC-6GHz Center Conductor Force 450 N Vibration 0 ft (00 m)/S2 (10 Hz to 500 Hz), 0.35 oz (10 g) Impedance 50 Ω Insertion Loss ≤ 0.24dB/6GHz Withstanding Voltage 2500V r.m.s at sea level Working Voltage 1000 Vr.m.s at sea level Insulation Resistance ≥ 5000 MΩ Durability ≥ 500 (cycles) Contact Resistance Center Contact ≤1mΩOuter Contact ≤1 mΩ Voltage Standing Wave Ratio Straight ≤ 1.15/6GHzRight angle ≤ 1.25/6GHz Temperature Range -67 °F to 311 °F (-55 °C to 155 °C) (-40 °F to 185 °F (PE Cable -40 °C to 85 °C)
