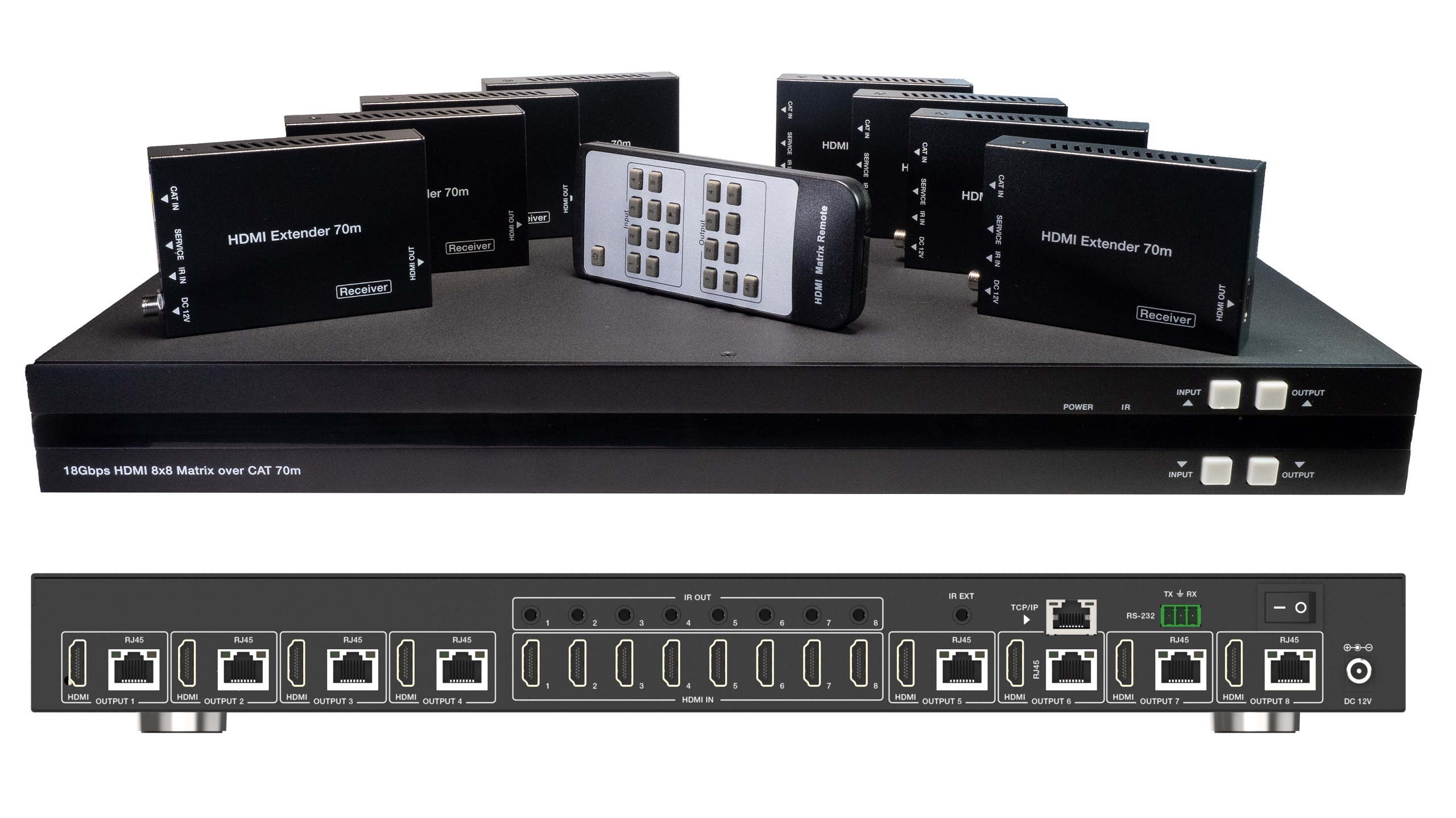

8×8 4K60Hz over CAT 6/7 Ethernet Matrix Switch with 8 PoE Receivers and 8 Mirrored HDMI Outputs. 70m Distribution Range. Matrixed IR.

$ 91.08

Description This 8×8 HDMI matrix can route 8 HDMI sources to up to sixteen displays as each output has mirrored HDMI and RJ45 ouputs. Supplied with 8 receivers that are powered by the matrix over the Ethernet cables. Send 4K signals up to 50m or 1080p signal up to 70m using CAT6/7. Output over HDMI cables will reach 5m for 4K@60 or 15m for 1080p. Control the matrix through IR commands, Web/Browser Interface or RS232 commands. Of course the system is supplied with IR blaster and receiver cables that allow users to conveniently control the matrix and HDMI input sources from in front of the remote displays. This 1U rack mounted matrix is supplied with rack mounting ears. Features HDMI 2.0b and HDCP 2.2/1.x compliant Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports HDMI ports support 18Gbps lossless uncompressed video bandwidth HDR, HDR10, HDR10 , Dolby Vision, HLG are supported HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio) Advanced EDID management and CEC control 12V Power over Cable on all CAT ports Control via front panel buttons, IR remote, RS-232, LAN and Web GUI Matrixed IR pass back allows you to control any input HDMI source from in front of any display.
