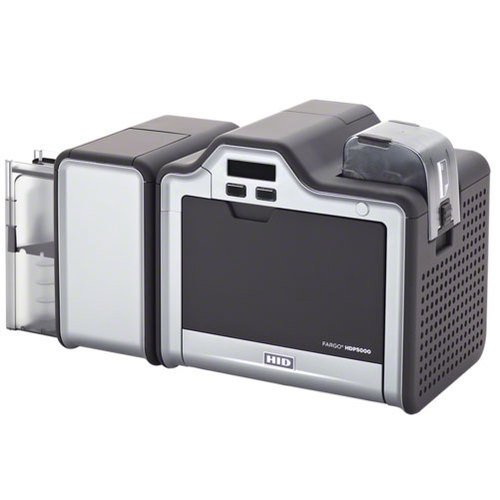

FARGO HDP 5000 ID Card Printer Dual Side

DescriptionFargo DTC 5000e ID card Printer Dual Side Print MethodHDP® Dye-Sublimation / Resin Thermal Transfer Resolution300 dpi (11.8 dots/mm) ColorsUp to 16.7 million / 256 shades per pixel Print Ribbon Options:Full-color, YMC*, 750 prints • Full-color with resin black, YMCK*, 500 prints • Full-color with two resin black panels, YMCKK*, 500 prints, • Full-color with resin black and heat seal panel, YMCKH*, 500 prints • Full-color with resin black and fluorescing panels, YMCFK*, 500 printsFull-color with resin black and inhibit panel, YMCKI*, 500 printsFull-color with two resin black and inhibit panels, YMCKIKI*,400 printsFull-color with resin black, inhibit panel, and heat seal panel,YMCIKH*, 450 printsResin black, K*, 3000 prints HDP Film OptionsClear (1,500 prints) • Standard Holographic (500 prints) • Contact HID regarding Custom Holographic Film options. Overlaminate Options:Thermal Transfer Overlaminate, .25 mil thick, 500 printsPolyGuard® Overlaminate, 1.0 mil and .6 mil thick, 250 prints (PolyGuard available in a CR-80 patch size)All overlaminates available in clear, standard holographic design or custom holographic design Print Speed:**Batch Mode:Up to 24 seconds per card / 150 cards per hour (YMC with transfer)*Up to 29 seconds per card / 124 cards per hour (YMCK with transfer)*Up to 40 seconds per card / 90 cards per hour (YMCKK with transfer)*Up to 35 seconds per card / 102 cards per hour (YMCK with transfer and dual-sided, simultaneous lamination)*Up to 48 seconds per card / 75 cards per hour (YMCKK with transfer and dual-sided, simultaneous lamination)* Accepted Standard Card SizesCR-80 (3.375”L x 2.125”W / 85.6mmL x 54mmW) Print AreaOver-the-edge on CR-80 cards Accepted Card ThicknessPrint only: .030” (30 mil) to .050” (50 mil) / .762mm to 1.27mmPrint/Lamination: .030” (30 mil) to .050” (50 mil) / .762mm to 1.27mm Accepted Card TypesABS, Laminated PVC, PET, PETG, proximity, smart, and magstripe cardsNote: ABS and PVC cards are not recommended for use in the HDP5000 Lamination Module.*** Input Card Cartridge Capacity100 cards (.030” / .762mm) Output Hopper Card Capacity200 cards (.030” / .762mm) Card CleaningReplaceable cleaning roller (included with each print ribbon) DisplayGraphical OLED Software DriversWindows® 10 / 8.1 / 8 / 7 / Vista® / XP / Server 2012 / Server 2012 R2 / Server 2008 / Server 2008 R2 / Server 2003 Single Wire USB 2.0 Encoding OptionsISO Magnetic Stripe Encoding, dual high- and low-coercivity, Tracks 1, 2 and 3Contactless Smart Card Encoder (HID iCLASS® and MIFARE) • ISO 7816 Contact Smart Card EncoderProx Card Reader (HID read-only) Supported Access Control Credential ProgrammingiCLASS® Standard/SE/SR/Seos, MIFARE Classic®, MIFARE DESFire® EV1, HID Prox (Also see the FARGO HDP6600 Card Encoding Modules Datasheet foradditional information) InterfaceUSB 2.0 (high speed) and Ethernet with internal print server Operating Temperature65° to 90° F / 18° to 32° C Humidity20 – 80% non-condensing Dimensions:HDP5000: 11.50”H x 12.25”W x 9.25”D / 292mmH x 313mmW x 235mmDHDP5000 Dual-Sided Module: 11.50”H x 17.50”W x 9.25”D / 292mmH x 445mmW x 235mmDHDP5000 Single-Sided Lam Module: 12.75”H x 25”W x 9.25”D / 324mmH x 635mmW x 235mmDHDP5000 Dual-Sided Module Dual-Sided Lam Module: 12.75”H x 30”W x 9.25”D / 324mmH x 762mmW x 235mmDLam Module: 12.75”H x 12.25”W x 9.25”D / 324mmH x 313mmW x 235mmD Weight:HDP5000: 16 lbs. / 7.3 kg, HDP5000 Dual-Sided Module: 22 lbs. / 10 kg, HDP5000 Single-Sided Lam Module: 28 lbs. / 12.7 kg,HDP5000 Dual-Sided Module Dual-Sided Lam Module: 36 lbs. / 16.4 kg CertificationsUL, CE, IC, FCC Class-A, CCC, BSMI, KC, MIC Supply Voltage100-240 VAC, 3.3A Supply Frequency50 Hz / 60 Hz FARGO Secure MaterialsFARGO Card Printers/Encoders require highly specialized media to function properly. To maximize printed card quality and durability, printhead life, andprinter/encoder reliability, use only HID Secure Materials. HID warranties are void, where not prohibited by law when non-HID Secure Materials are used. OptionsDual card input hopper module • Card lamination module – single-sided or dual-sided (simultaneous)*** • Magnetic stripe encoding • 200-card inputhopperSmart card encoding (contact/contactless) • Dual-sided printing • Door and cartridge locks • Printer cleaning kitSecure proprietary consumables system • Custom secure holographic HDP Film and overlaminate SoftwareFARGO Workbench™ diagnostic utility with Color Assist spot-color matching
