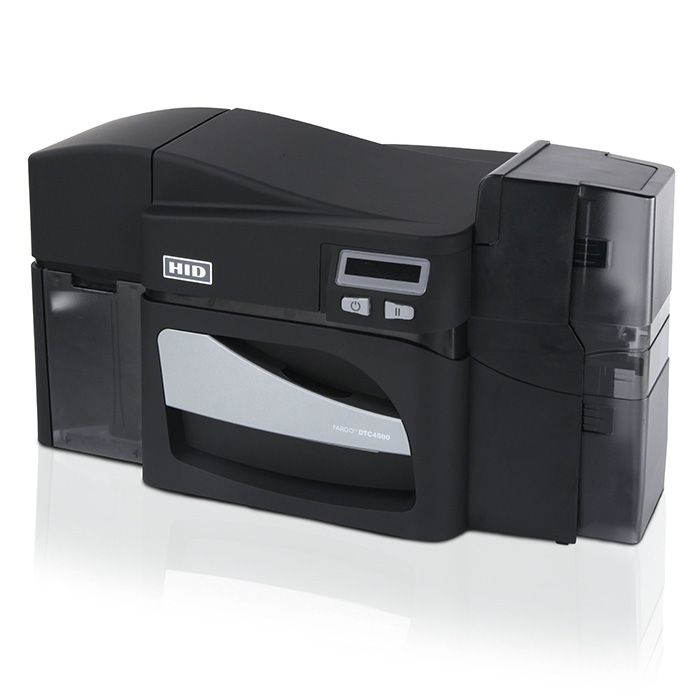

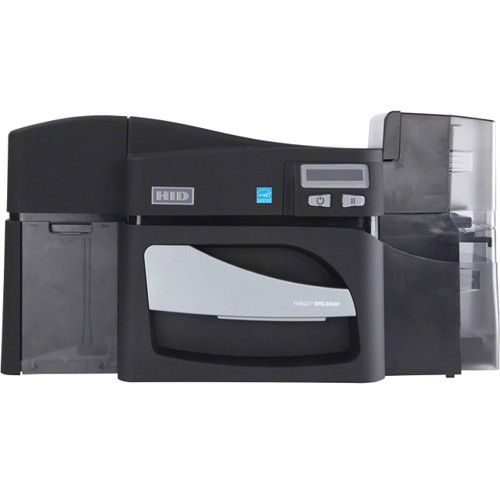

FARGO DTC4500e ID Card Printer Dual Side Printer

DescriptionFargo DTC4500e ID card Printer Dual Side Print MethodDye sublimation/resin thermal transfer Resolution300 dpi (11.8 dots/mm) continuous tone ColorsUp to 16.7 million / 256 shades per pixel Print Ribbon OptionsThe DTC4500e is compatible with a variety of economical, eco-friendly refill ribbons for the reusable ECO cartridge:Full-color with resin black and overlay panel, YMCKO*, 500 printsFull-color half-panel with resin black and overlay panel, YMCKO*, 850 printsFull-color with two resin black panels and overlay panel, YMCKOK*, 500 printsFull-color with fluorescing, resin black and overlay panel, YMCFKO*, 500 printsFull-color with two resin black panels, YMCKK*, 500 printsResin black (standard and premium), 3000 printsResin white, 2000 prints Print Speed**6 seconds per card (K*); 8 seconds per card (KO*); 16 seconds per card (YMCKO*); 24 seconds per card (YMCKOK*) Security FeaturesOptional locking hoppers; password protection; AES 256 encryption Accepted Standard Card SizesCR-80 (3.375˝L x 2.125˝W / 85.6 mm L x 54 mm W); CR-79 adhesive back (3.313˝L x 2.063˝W / 84.1 mm L x 52.4 mm W) Print AreaCR-80 edge-to-edge (3.36˝L x 2.11˝W / 85.3 mm L x 53.7 mm W); CR-79 (3.3˝L x 2.04˝W / 83.8 mm L x 51.8 mm W) Accepted Card ThicknessPrint only: .009˝ – .040˝ / 9 mil – 40 mil / .229 mm – 1.016 mm; print / lamination: .030˝ – .040˝ / 30 mil – 40 mil / .762 mm – 1.02 mm Accepted Card TypesPVC or polyester cards with polished PVC finish; monochrome resin required for 100% polyester cards; rewriteInput Hopper Card Capacity100 cards per input hopper (.030˝ / .762 mm) – Dual input hopper standard on every unit for a total input capacity of 200 cards Output Hopper Card CapacitySingle-sided: Up to 30 cards. Dual-sided: Up to 100 cards. (.030” / .762 mm) Reject Hopper Card CapacityUp to 100 cards (.030˝ / .762 mm) – same-side input/output card hopper or lamination module required Card CleaningCard cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change Memory32 MB RAM Software DriversWindows® XP / Vista™ (32 bit & 64 bit) / Server 2003, 2008, 2012 / Windows® 7, 8 & 10 (32 & 64 bit) InterfaceUSB 2.0, optional Ethernet with internal print server Operating Temperature65° to 80° F / 18° to 27° C Humidity20–80% non-condensing DimensionsSingle-sided printer: 9.8˝ H x 18.1˝ W x 9.2˝ D / 249 mm H x 460 mm W x 234 mm DDual-sided printer: 9.8˝ H x 18.7˝ W x 9.2˝ D / 249 mm H x 475 mm W x 234 mm DPrinter lam: 18.9˝ H x 18.7˝ W x 9.2˝ D / 480 mm H x 475 mm W x 234 mm D WeightSingle-sided printer: 9 lbs. / 4.1 Kg; dual-sided printer: 11 lbs. / 5 Kg; printer lam: 20 lbs. / 9.1 Kg Agency ListingsSafety: UL 60950-2, CSA C22.2 (60950-07), and CE; EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC Environmental FeaturesGreenCircle® Certified card printer (base models only without encoders), refillable supply cartridges (ECO), card rewrite support Supply Voltage100-240Vac, 50-60Hz, 1.6 Amps max Supply Frequency50 Hz / 60 Hz Encoding Options(HID Encoders)Supported smart card and magnetic stripe technologies: 125 kHz (HID Prox) reader; 13.56 MHz (iCLASS® Standard / SE / SR / Seos,MIFARE Classic®, MIFARE Plus®, MIFARE DESFire®, MIFARE DESFire EV1/EV2, ISO 14443 A/B, ISO 15693) read/write encoder;contact smart card encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as wellas synchronous cards; ISO magnetic stripe encoding, dual high- and low-coercivity, tracks 1, 2 and 3 Supported Access Control Credential ProgrammingiCLASS Standard/SE/SR/Seos, MIFARE Classic, MIFARE DESFire EV1, HID Prox OptionsDual-sided printing; single- or dual-sided lamination; same-side input/output card hopper; locking card input/output hopper; smartcard encoding (contact/contactless); magnetic stripe encoding; printer cleaning kit; Ethernet with internal print server; secureproprietary consumables system SoftwareFARGO Workbench™ diagnostic utility with Color Assist spot color matching DisplayUser-friendly, SmartScreen graphical display
