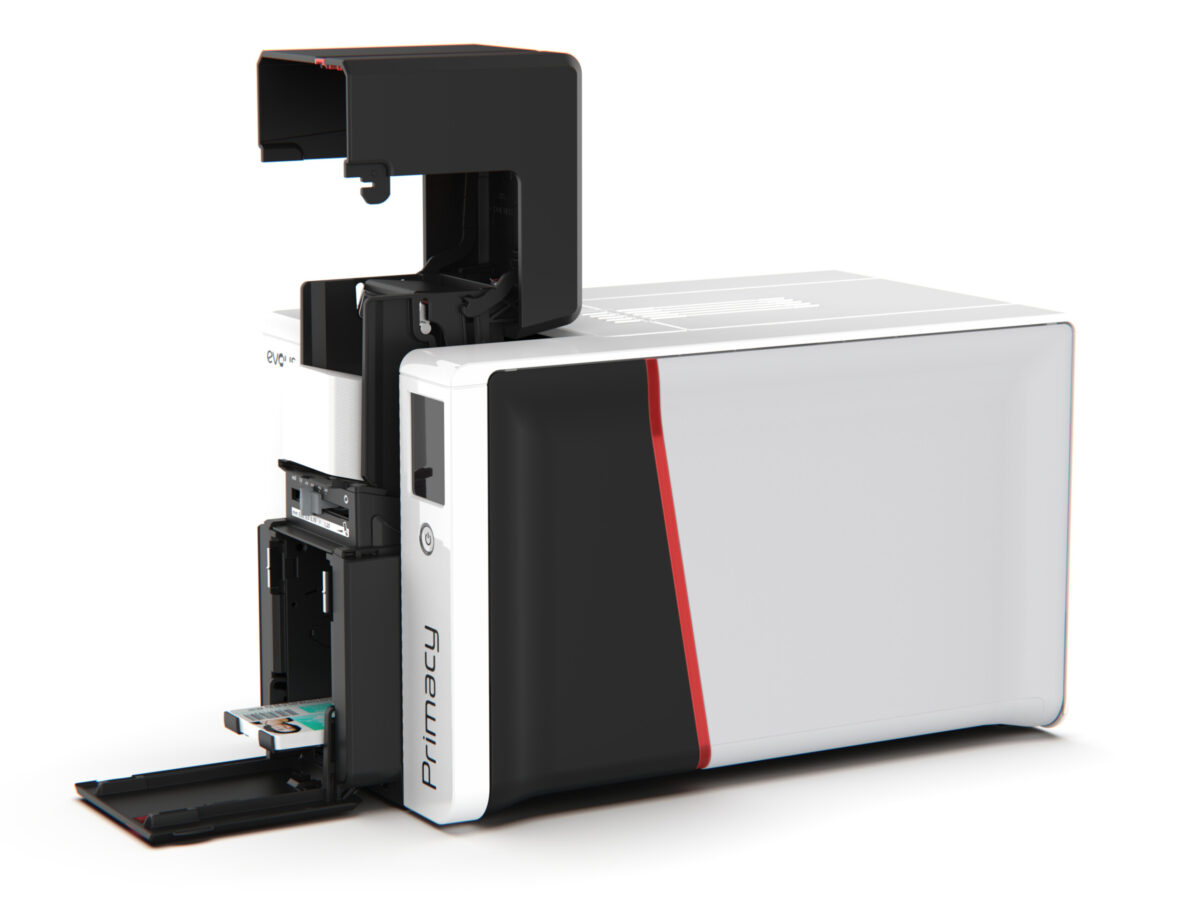

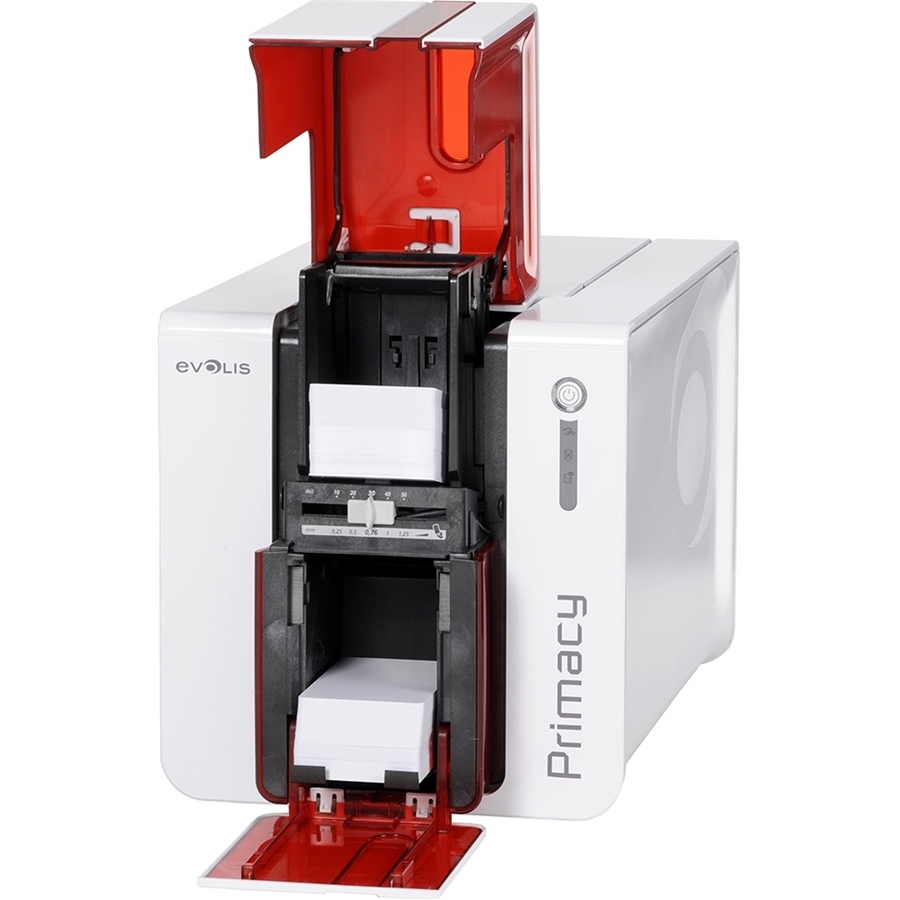

DescriptionEvolis Primacy 2 ID card Printer Dual Side Detailed Specification GENERAL FEATURES ∙ Color sublimation directly on the card and resin thermaltransfer∙ Rewritable card printing∙ Single or double-sided print module∙ Print resolution:– In color and monochrome: 300×300 dpi & 300×600 dpi– In monochrome: 300×1200 dpi∙ Print optimization via color profile∙ User interface: LED panel or LCD touchscreen PRINT SPEED ∙ Single-sided (YMCKO): up to 280 cards/hour∙ Double-sided (YMCKOK): 170 cards/hour∙ Single-sided (YMCK) with lamination module: up to 215cards/hour CARD MANAGEMENT AND SPECIFICATIONS ∙ Feeder capacity: 100 cards (0.76 mm – 30 mil)∙ Hopper capacity: 100 cards (0.76 mm – 30 mil)∙ Rear hopper capacity: 50 cards (0.76 mm – 30 mil)2∙ Card types: PVC cards, composite PVC cards, PET cards, ABScards, and rewritable card PORTS/CONNECTIVITY ∙ USB (cable supplied) and Ethernet∙ Wireless connection 802.11b/g on Wireless range EVOLIS HIGH TRUST® RIBBONS To maximize the quality and lifetime of the printed cards, theservice life of the print head, and the overall reliability of yourprinter, use Evolis High Trust® ribbons.∙ Automatic recognition and setup∙ Ribbon cassettes for one-step installation or an EASY4PROoffer without cassette for users who want to reduce theirenvironmental impact.– YMCKO: 300 prints per roll– YMCKOK: 200 prints per roll– YMCKOO: 250 prints per roll– Black monochrome: 2000 prints per roll1 SECURITY ∙ Kensington® security lock∙ Optional mechanical locking system∙ Print head protection during maintenance or ribbonchanges∙ Erasing sensitive data from the printer’s memory∙ Kineclipse® optional∙ Optional internal scanner reader ENCODING MODULES – Magnetic stripe encoder ISO 7811– Contact smartcard encoders– Contactless smartcard encoders– Dual smartcard encoders (contact / contactless)∙ Options can be combined∙ Factory or on-site installation SOFTWARE ∙ Printer management by Evolis Premium Suite for Windows,Mac, and Linux∙ Evolis SDK available for easy product integration∙ Supplied with cardPresso XXS for designing and printingbadges
