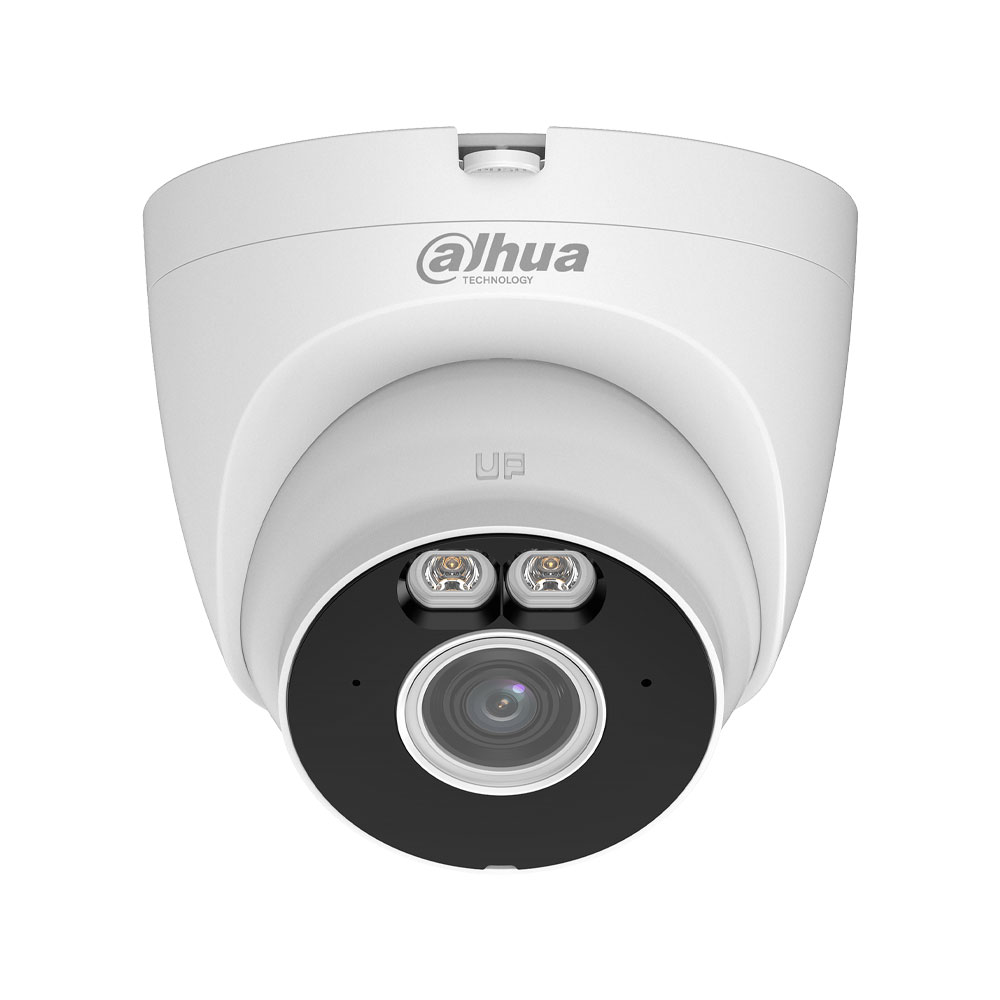

2MP Outdoor WiFi IP Dome Camera (DH-T2A-LED) This Outdoor WiFi IP Dome – DH-T2A-LED CCTV features a 1/3” CMOS sensor and offers versatile digital resolution options, including 1080P, 1.3MP, and 720P, with smart compression formats like H.265 and H.264 . It captures clear images even in low light, with a 2.8mm fixed lens providing a wide 98° horizontal viewing angle. Equipped with smart lighting, it has two warm LEDs with a 30-meter range and supports advanced features like digital WDR, 3D noise reduction, and multiple picture modes. With IP67-rated protection and a durable metal and plastic casing, it’s built for reliability in harsh environments. The camera also supports Wi-Fi, remote viewing, and offers up to 256GB of MicroSD storage, making it an ideal solution for robust, high-quality surveillance. Camera: – Image Sensor: 1/3″ CMOS – Resolution: 1920 (H) × 1080 (V) – Shutter Speed: Auto/Manual, 1/3 s to 1/100,000 s – Illumination Distance: Up to 30 m (98.53 ft) – Illuminator Control: Auto, with 2 warm lights – Aperture: Maximum of F1.6 – Field of View: – 2.8 mm lens: H: 98°, V: 55°, D: 115° – 3.6 mm lens: H: 78°, V: 41°, D: 94° Intelligence: – Human Detection: Supports accurate human classification and detection Video & Audio: – Video Compression: H.264B, H.264, H.264H, H.265 – Frame Rate: – Main Stream: 1920 × 1080 @ 1–25/30 fps – Sub Stream: 640 × 480 @ 1–25/30 fps – Resolution Options: 1080p, 1280 × 960, 1280 × 720 – Bit Rate: H.264: 32 kbps–4096 kbps, H.265: 12 kbps–4096 kbps – Day/Night Modes: Color/B&W – Motion Detection: ON/OFF – Smart Illumination: Enabled – Image Rotation: 0°/180° – Audio: Built-in mic with G.711a, G.711Mu, PCM, G.726 compression Network: – Port: RJ-45 (10/100 Base-T) – Wi-Fi: IEEE 802.11b/g/n, 2.4 GHz – Storage: Supports Micro SD card up to 256 GB – Software: Compatible with Smart PSS, DSS, DMSS – Mobile App: iOS and Android support General: – Certifications: CE-LVD, CE-EMC, CE-RED – Power Supply: 12 VDC – Power Consumption: 2 W (basic), up to 5.8 W (with H.265 and warm light) – Operating Conditions: –40 °C to 60 °C (–40 °F to 140 °F), Humidity ≤95% – Protection: IP67-rated for dust and water resistance – Material: Metal Plastic inner core, Plastic cover – Dimensions: Φ109.9 mm × 102.2 mm (Φ4.33″ × 4.02″) – Weight: 323 g (0.71 lb)
