Solar Water Pump Kit – 3200L/h Flow 80m Bore Depth

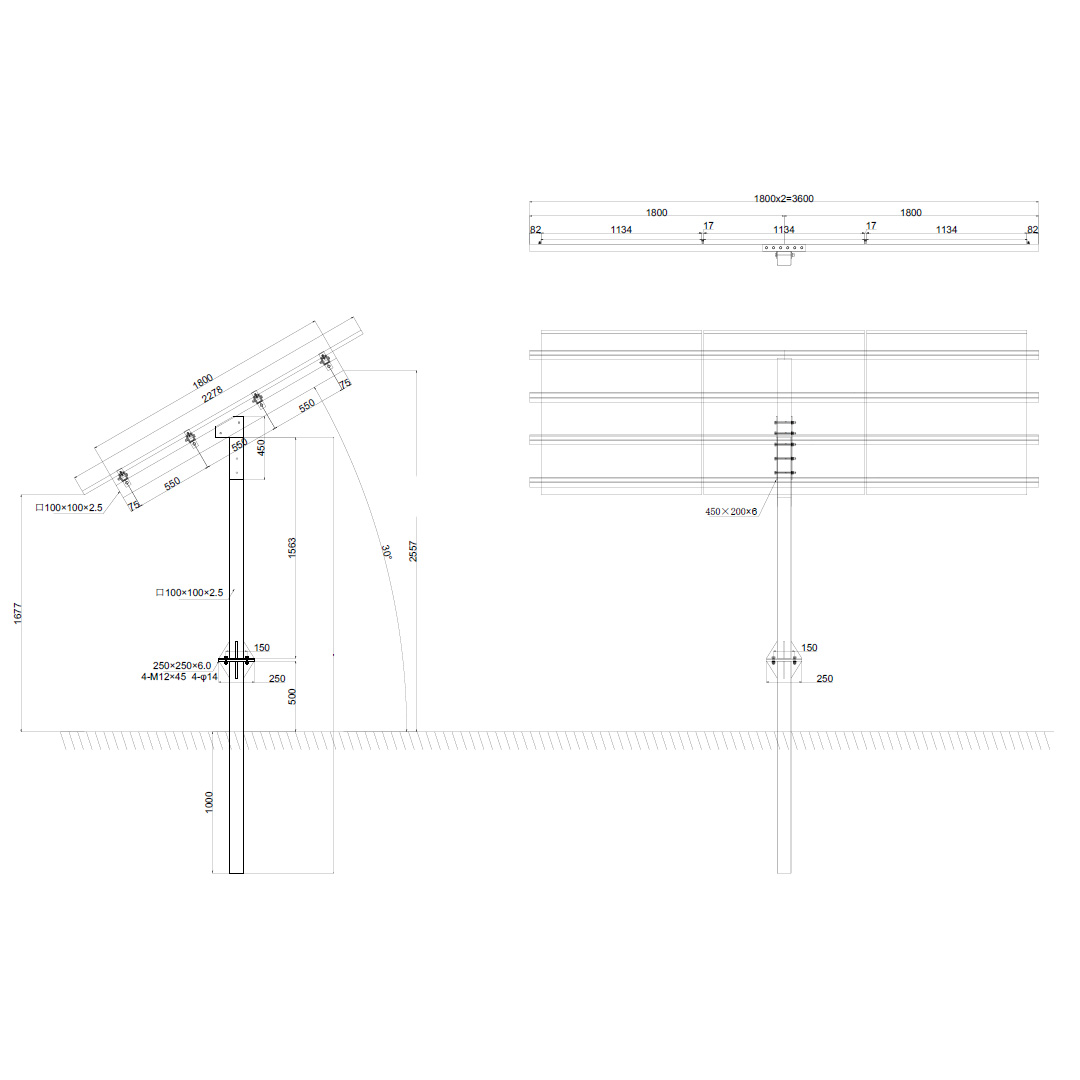

The SOL32000-80-KIT is a complete pump solution, including a pump package, cabling, controller, solar PV panels, and a mounting frame with an embedment pole. It serves as a solar-powered alternative to traditional windmill and diesel pumps, offering convenience, efficiency and sustainability. This product contains the following: Stainless Steel Submersible Pump Package 316 stainless steel submersible screw pump to endure harsh conditions in bores. Full length rotor motors to provide a maximum 3,200L per hour flow and 80m total head capacity. Easy to install, user-friendly pump and MPPT controller with full instruction guide. High & low water sensors are included to ensure your pump doesn’t run dry or overfills your tank. 1″ outlet for this high-head Garpen submersible solar water pump. 50m pump power cabling for the pump head, PV cable and MC4 weather resistant solar connectors. 2 x 560W solar PV panels that can be coupled together. Cabling and instructions on how to connect the solar panels in parallel SOLPOLE-FRAME-2-3X560W, quick and easy is the quick and easy to install frame that can accommodate the 2 solar PV panels. The 3 metre pole provides sufficient embedment depth for stability and solar PV panel clearance off the ground to avoid disturbance from animals. Additional Information Max Head (m) 80 Max Flow (L/hour) 3200 Pump Diameter 100mm Outlet Size (in) 1 Power Input (W) 750 Voltage (V DC) 48 Pump Material 316 Stainless Steel Power Cable Length (m) 50 Power Cable Size 3G4.0mm2 Solar PV Panels 2 x 560W Solar Panels Mounting Frame and Pole 2x section pole and frame included Weight (kg) Dimensions (cm) L x W x H
